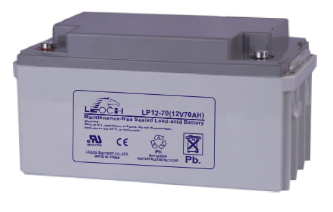

Leoch LP12-70 SLA (AGM) Battery
Leoch LP Series LP12-70 12 Volt / 70 Ah @10 Hr Battery with Recessed M6 Terminals
Loading...
Description
Leoch LP Series LP12-70 12 Volt / 70 Ah @10 Hr Battery with Recessed M6 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LP12-70R |
| Dimensions | 13.7″ (L) x 6.57″ (W) x 7.01″ (H) |
| Dimensions (mm) | 348 mm (L) x 167 mm (W) x 178 mm (H) |
| Weight | 47.1 lbs (21.4 kgs) |
Additional information
| Weight | 47.1 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | LP Series |
| Model | LP12-70 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | LP12-70 |
| Manufacturers SKU | LP12-70 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 70 Ah @10 Hr |
| Capacity @20 Hr | 73.6 |
| Capacity @10 Hr | 70 |
| Capacity @1 Hr | 44.6 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 6.6 mOhms |
| Maximum Current | 700 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5-13.8 V @ 25C |
| Cycle Charge Voltage | 14.4-15.0 V @ 25C |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 13.7 |
| Width (In) | 6.57 |
| Height - Case (In) | 7.01 |
| Height - Overall (In) | 7.01 |
| Length (mm) | 348 |
| Width (mm) | 167 |
| Height - Case (mm) | 178 |
| Height - Overall (mm) | 178 |
| Weight (lb) | 47.1 |
| Weight (kg) | 21.4 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
