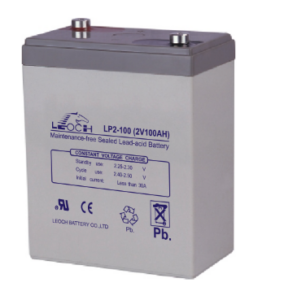

Leoch LP2-100 SLA (AGM) Battery

Leoch LP Series LP2-100 2 Volt / 100 Ah @10 Hr Battery with Recessed M6 Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch LP Series LP2-100 2 Volt / 100 Ah @10 Hr Battery with Recessed M6 Terminals

Specifications
Battery Store SKU LE-LP2-100R
Dimensions 6.69″ (L) x 2.83″ (W) x 8.07″ (H)
Dimensions (mm) 170 mm (L) x 72 mm (W) x 205 mm (H)
Weight 12.8 lbs (5.8 kgs)

Additional information

Weight 12.8 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

LP Series

Model

LP2-100

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

LP2-100

Manufacturers SKU

LP2-100

Deprecated Model #
Applications
Voltage

2

Capacity (Nominal)

100 Ah @10 Hr

Capacity @20 Hr

105

Capacity @10 Hr

100

Capacity @1 Hr

64

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance

1.0 mOhms

Maximum Current

800 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

2.25-2.30 V @ 25C

Cycle Charge Voltage

2.4-2.5 V @ 25C

Maximum Charge Current

C/3

Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

6.69

Width (In)

2.83

Height - Case (In)

8.07

Height - Overall (In)

8.43

Length (mm)

170

Width (mm)

72

Height - Case (mm)

205

Height - Overall (mm)

214

Weight (lb)

12.8

Weight (kg)

5.8

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
