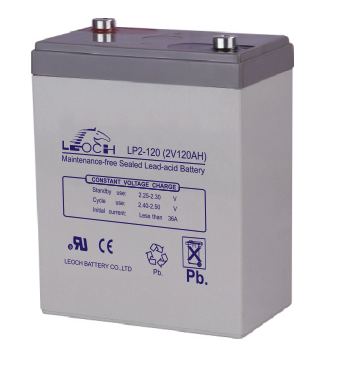

Leoch LP2-120 SLA (AGM) Battery

Leoch LP Series LP2-120 2 Volt / 120 Ah @10 Hr Battery with Recessed M6 Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch LP Series LP2-120 2 Volt / 120 Ah @10 Hr Battery with Recessed M6 Terminals

Specifications
Battery Store SKU LE-LP2-120R
Dimensions 6.69″ (L) x 3.86″ (W) x 8.07″ (H)
Dimensions (mm) 170 mm (L) x 98 mm (W) x 205 mm (H)
Weight 15.8 lbs (7.2 kgs)

Additional information

Weight 15.8 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

LP Series

Model

LP2-120

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

LP2-120

Manufacturers SKU

LP2-120

Deprecated Model #
Applications
Voltage

2

Capacity (Nominal)

120 Ah @10 Hr

Capacity @20 Hr

125

Capacity @10 Hr

120

Capacity @1 Hr

76.4

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance

1.0 mOhms

Maximum Current

960 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

2.25-2.30 V @ 25C

Cycle Charge Voltage

2.4-2.5 V @ 25C

Maximum Charge Current

C/3

Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

6.69

Width (In)

3.86

Height - Case (In)

8.07

Height - Overall (In)

8.43

Length (mm)

170

Width (mm)

98

Height - Case (mm)

205

Height - Overall (mm)

214

Weight (lb)

15.8

Weight (kg)

7.2

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
