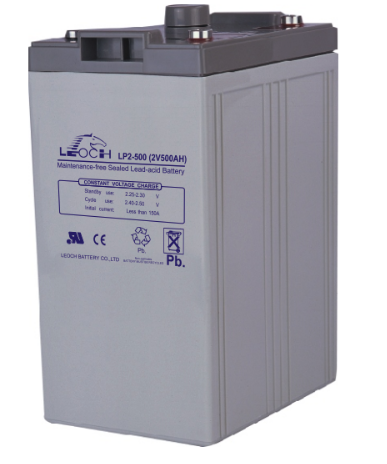

Leoch LP2-500 SLA (AGM) Battery
Leoch LP Series LP2-500 2 Volt / 500 Ah @10 Hr Battery with Recessed M8 Terminals
Loading...
Description
Leoch LP Series LP2-500 2 Volt / 500 Ah @10 Hr Battery with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LP2-500R |
| Dimensions | 9.45″ (L) x 6.89″ (W) x 12.99″ (H) |
| Dimensions (mm) | 240 mm (L) x 175 mm (W) x 330 mm (H) |
| Weight | 66 lbs (30 kgs) |
Additional information
| Weight | 66 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | Each (1 pieces) |
| Product Line | |
| Product Series | LP Series |
| Model | LP2-500 |
| Terminal | Recessed M8 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | LP2-500 |
| Manufacturers SKU | LP2-500 |
| Deprecated Model # | |
| Applications | |
| Voltage | 2 |
| Capacity (Nominal) | 500 Ah @10 Hr |
| Capacity @20 Hr | 530 |
| Capacity @10 Hr | 500 |
| Capacity @1 Hr | 307 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 0.55 mOhms |
| Maximum Current | 4000 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 2.25-2.30 V @ 25C |
| Cycle Charge Voltage | 2.4-2.5 V @ 25C |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 9.45 |
| Width (In) | 6.89 |
| Height - Case (In) | 12.99 |
| Height - Overall (In) | 13.78 |
| Length (mm) | 240 |
| Width (mm) | 175 |
| Height - Case (mm) | 330 |
| Height - Overall (mm) | 350 |
| Weight (lb) | 66 |
| Weight (kg) | 30 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
