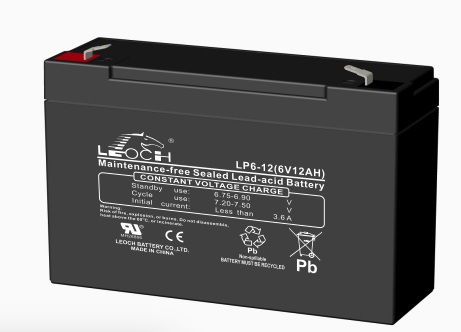

Leoch LP6-12F2 SLA (AGM) Battery

Leoch LP Series LP6-12F2 6 Volt / 12 Ah @20 Hr Battery with F2 (0.250″) Terminals

Loading...

Description

Leoch LP Series LP6-12F2 6 Volt / 12 Ah @20 Hr Battery with F2 (0.250″) Terminals

Specifications
Battery Store SKU LE-LP6-12F2
Dimensions 5.94″ (L) x 1.99″ (W) x 3.7″ (H)
Dimensions (mm) 151 mm (L) x 50.5 mm (W) x 94 mm (H)
Weight 3.5 lbs (1.6 kgs)

Additional information

Weight 3.5 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

LP Series

Model

LP6-12

Terminal

F2 (0.250")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

LP6-12F2

Manufacturers SKU

LP6-12F2

Deprecated Model #
Applications
Voltage

6

Capacity (Nominal)

12 Ah @20 Hr

Capacity @20 Hr

12

Capacity @10 Hr

11.2

Capacity @1 Hr

7.2

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance

9 mOhms

Maximum Current

180 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

6.75-6.9 V @ 25C

Cycle Charge Voltage

7.2-7.5 V @ 25C

Maximum Charge Current

C/3

Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

5.94

Width (In)

1.99

Height - Case (In)

3.7

Height - Overall (In)

3.94

Length (mm)

151

Width (mm)

50.5

Height - Case (mm)

94

Height - Overall (mm)

100

Weight (lb)

3.5

Weight (kg)

1.6

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
