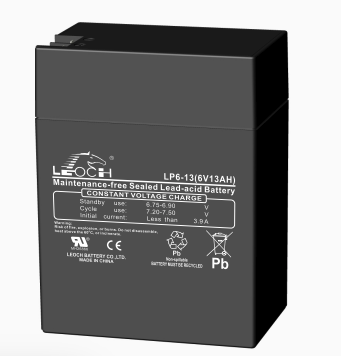

Leoch LP6-13 SLA (AGM) Battery
Leoch LP Series LP6-13 6 Volt / 13 Ah @20 Hr Battery with Polarized F1/F2 Terminals
Loading...
Description
Leoch LP Series LP6-13 6 Volt / 13 Ah @20 Hr Battery with Polarized F1/F2 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LP6-13FP |
| Dimensions | 4.23″ (L) x 2.76″ (W) x 5.51″ (H) |
| Dimensions (mm) | 107.5 mm (L) x 70 mm (W) x 140 mm (H) |
| Weight | 4.9 lbs (2.24 kgs) |
Additional information
| Weight | 4.9 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | LP Series |
| Model | LP6-13 |
| Terminal | Polarized F1/F2 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | LP6-13 |
| Manufacturers SKU | LP6-13 |
| Deprecated Model # | |
| Applications | |
| Voltage | 6 |
| Capacity (Nominal) | 13 Ah @20 Hr |
| Capacity @20 Hr | 13 |
| Capacity @10 Hr | 12.3 |
| Capacity @1 Hr | 8.35 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 12 mOhms |
| Maximum Current | 195 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 6.75-6.9 V @ 25C |
| Cycle Charge Voltage | 7.2-7.5 V @ 25C |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 4.23 |
| Width (In) | 2.76 |
| Height - Case (In) | 5.51 |
| Height - Overall (In) | 5.51 |
| Length (mm) | 107.5 |
| Width (mm) | 70 |
| Height - Case (mm) | 140 |
| Height - Overall (mm) | 140 |
| Weight (lb) | 4.9 |
| Weight (kg) | 2.24 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
