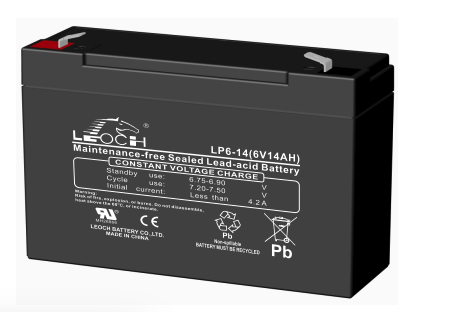

Leoch LP6-14 SLA (AGM) Battery

Description

Leoch LP Series LP6-14 6 Volt / 14 Ah @20 Hr Battery with F2 (0.250″) Terminals

Specifications
Battery Store SKU	LE-LP6-14F2
Dimensions	” (L) x ” (W) x ” (H)
Dimensions (mm)	mm (L) x mm (W) x mm (H)
Weight	lbs ( kgs)

Additional information

Weight	4.2 lbs
Manufacturer	Leoch
price-discounts	Each (1 pieces), Box/Case (10 pieces), Pallet (20 pieces)
Product Line
Product Series	LP Series
Model	LP6-14
Terminal	F2 (0.250")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	LP6-14
Manufacturers SKU	LP6-14
Deprecated Model #
Applications
Voltage	6
Capacity (Nominal)	14 Ah @20 Hr
Capacity @20 Hr	14
Capacity @10 Hr	13.2
Capacity @1 Hr	9.2
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3-5 Years
Shelf Life	6 Months
Internal Resistance	14 mOhms
Maximum Current	210 Amps
Cycles @ 80% Discharge
Standby Charge Voltage	6.75-6.9 V @ 25C
Cycle Charge Voltage	7.2-7.5 V @ 25C
Maximum Charge Current	C/3
Operating Temp Low (°F)	5
Operating Temp High (°F)	122
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	5.94
Width (In)	1.99
Height - Case (In)	3.7
Height - Overall (In)	3.94
Length (mm)	151
Width (mm)	50.5
Height - Case (mm)	94
Height - Overall (mm)	100
Weight (lb)	4.2
Weight (kg)	1.9
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet

Description	Weight	Qty in Stock	Price
PowerSonic PS Series PS-6100F2 6 Volt / 12 Ah @20 Hr Lead Acid Battery with F2 (0.250") Terminals / ABS Plastic Case	4.29 lbs	46 in stock	As low as $15.06 each
Bright Way BW Series BW 6120 F2 6 Volt / 12 Ah @ 20 Hr with F2 (0.250") Terminals	4.1 lbs	Out of stock	We can help find the Bright Way BW Series BW 6120 F2 6 Volt / 12 Ah @ 20 Hr with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
MK Battery High Rate Series ES12-6 F2 6 Volt / 12 Ah @20 Hr with F2 (0.250") Terminals	lbs	Out of stock	As low as $14.38 each
GS Yuasa PE Series PE6V12 F2 6 Volt / 12 Ah @20 Hr with F2 (0.250") Terminals	4.6 lbs	Out of stock	We can help find the GS Yuasa PE Series PE6V12 F2 6 Volt / 12 Ah @20 Hr with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
Leoch LP Series LP6-10F2 6 Volt / 10 Ah @20 Hr Battery with F2 (0.250") Terminals	lbs	Out of stock	We can help find the Leoch LP Series LP6-10F2 6 Volt / 10 Ah @20 Hr Battery with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
Leoch LP Series LP6-12F2 6 Volt / 12 Ah @20 Hr Battery with F2 (0.250") Terminals	lbs	Out of stock	We can help find the Leoch LP Series LP6-12F2 6 Volt / 12 Ah @20 Hr Battery with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
DISCONTINUED - EnerSys DataSafe NPX Series NPX-50T 6 Volt / 13 Ah @20 Hr with F2 (0.250") Terminals	4.598 lbs	Out of stock	We can help find the EnerSys DataSafe NPX Series NPX-50T 6 Volt / 13 Ah @20 Hr with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
CSB GP6120F2 GP Series 6 Volt / 12 Ah @20 Hr with F2 (0.250") Terminals and ABS Plastic Case	4.1 lbs	Out of stock	As low as $13.14 each
Leoch LP Series LP6-10F2 6 Volt / 10 Ah @20 Hr Battery with F2 (0.250") Terminals	3.4 lbs	Out of stock	As low as $11.99 each
Leoch LP Series LP6-12F2 6 Volt / 12 Ah @20 Hr Battery with F2 (0.250") Terminals	3.5 lbs	Out of stock	As low as $12.41 each
