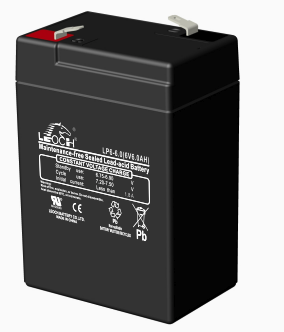

Leoch LP6-6.0 SLA (AGM) Battery

Leoch LP Series LP6-6.0 6 Volt / 6.0 Ah @20 Hr Battery with F1 (0.187″) Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch LP Series LP6-6.0 6 Volt / 6.0 Ah @20 Hr Battery with F1 (0.187″) Terminals

Specifications
Battery Store SKU LE-LP6-6.0F1
Dimensions 2.76″ (L) x 1.85″ (W) x 3.94″ (H)
Dimensions (mm) 70 mm (L) x 47 mm (W) x 100 mm (H)
Weight 2 lbs (0.9 kgs)

Additional information

Weight 2 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

LP Series

Model

LP6-6.0

Terminal

F1 (0.187")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

LP6-6.0

Manufacturers SKU

LP6-6.0

Deprecated Model #
Applications
Voltage

6

Capacity (Nominal)

6.0 Ah @20 Hr

Capacity @20 Hr

6

Capacity @10 Hr

5.52

Capacity @1 Hr

3.68

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance

16 mOhms

Maximum Current

90 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

6.75-6.9 V @ 25C

Cycle Charge Voltage

7.2-7.5 V @ 25C

Maximum Charge Current

C/3

Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

2.76

Width (In)

1.85

Height - Case (In)

3.94

Height - Overall (In)

4.17

Length (mm)

70

Width (mm)

47

Height - Case (mm)

100

Height - Overall (mm)

106

Weight (lb)

2

Weight (kg)

0.9

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
