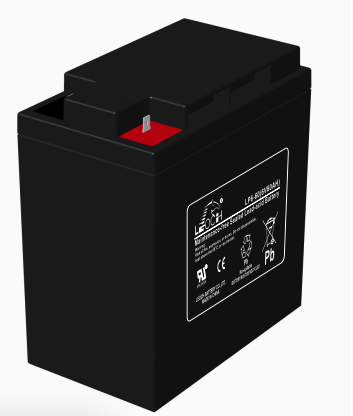

Leoch LP6-60 SLA (AGM) Battery

Leoch LP Series LP6-60 6 Volt / 60 Ah @10 Hr Battery with F2 (0.250″) Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch LP Series LP6-60 6 Volt / 60 Ah @10 Hr Battery with F2 (0.250″) Terminals

Specifications
Battery Store SKU LE-LP6-60F2
Dimensions 7.28″ (L) x 4.41″ (W) x 8.07″ (H)
Dimensions (mm) 185 mm (L) x 112 mm (W) x 205 mm (H)
Weight 20 lbs (9.1 kgs)

Additional information

Weight 20 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

LP Series

Model

LP6-60

Terminal

F2 (0.250")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

LP6-60

Manufacturers SKU

LP6-60

Deprecated Model #
Applications
Voltage

6

Capacity (Nominal)

60 Ah @10 Hr

Capacity @20 Hr

61.8

Capacity @10 Hr

60

Capacity @1 Hr

37.5

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

5 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance

6.0 mOhms

Maximum Current

600 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

6.75-6.9 V @ 25C

Cycle Charge Voltage

7.2-7.5 V @ 25C

Maximum Charge Current

C/3

Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

7.28

Width (In)

4.41

Height - Case (In)

8.07

Height - Overall (In)

8.07

Length (mm)

185

Width (mm)

112

Height - Case (mm)

205

Height - Overall (mm)

205

Weight (lb)

20

Weight (kg)

9.1

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
