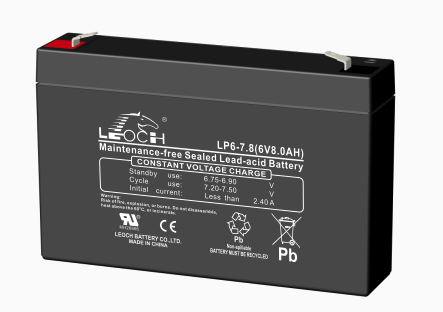

Leoch LP6-7.8 SLA (AGM) Battery

Leoch LP6-7.8 SLA (AGM) Battery

SKU: LE-LP6-7.8F2 Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, Leoch, LP Series, LP6-7.8 Tags: AGM-Lead Calcium, Lead Acid, Leoch, LP Series, LP6-7.8

Leoch LP Series LP6-7.8 6 Volt / 8.0 Ah @20 Hr Battery with F2 (0.250″) Terminals

The BSI Pricing Advantage

Add To Wishlist

Description

Leoch LP Series LP6-7.8 6 Volt / 8.0 Ah @20 Hr Battery with F2 (0.250″) Terminals

Specifications
Battery Store SKU	LE-LP6-7.8F2
Dimensions	5.91″ (L) x 1.34″ (W) x 3.7″ (H)
Dimensions (mm)	150 mm (L) x 34 mm (W) x 94 mm (H)
Weight	2.8 lbs (1.28 kgs)

Additional information

Weight	2.8 lbs
Manufacturer	Leoch
price-discounts
Product Line
Product Series	LP Series
Model	LP6-7.8
Terminal	F2 (0.250")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	LP6-7.8
Manufacturers SKU	LP6-7.8
Deprecated Model #
Applications
Voltage	6
Capacity (Nominal)	8.0 Ah @20 Hr
Capacity @20 Hr	8
Capacity @10 Hr	7.57
Capacity @1 Hr	5.95
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3-5 Years
Shelf Life	6 Months
Internal Resistance	12 mOhms
Maximum Current	120 Amps
Cycles @ 80% Discharge
Standby Charge Voltage	6.75-6.9 V @ 25C
Cycle Charge Voltage	7.2-7.5 V @ 25C
Maximum Charge Current	C/3
Operating Temp Low (°F)	5
Operating Temp High (°F)	122
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	5.91
Width (In)	1.34
Height - Case (In)	3.7
Height - Overall (In)	3.94
Length (mm)	150
Width (mm)	34
Height - Case (mm)	94
Height - Overall (mm)	100
Weight (lb)	2.8
Weight (kg)	1.28
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
