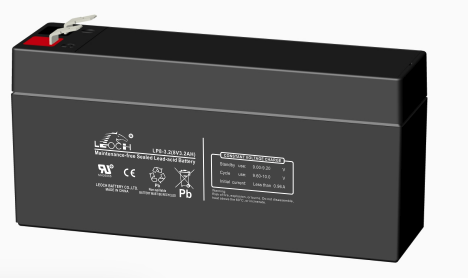

Leoch LP8-3.2 SLA (AGM) Battery
Leoch LP Series LP8-3.2 8 Volt / 3.2 Ah @20 Hr Battery with F1 (0.187″) Terminals
Loading...
Description
Leoch LP Series LP8-3.2 8 Volt / 3.2 Ah @20 Hr Battery with F1 (0.187″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LP8-3.2F1 |
| Dimensions | 5.28″ (L) x 1.44″ (W) x 2.48″ (H) |
| Dimensions (mm) | 134 mm (L) x 36.5 mm (W) x 63 mm (H) |
| Weight | 1.7 lbs (0.75 kgs) |
Additional information
| Weight | 1.7 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | LP Series |
| Model | LP8-3.2 |
| Terminal | F1 (0.187") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | LP8-3.2 |
| Manufacturers SKU | LP8-3.2 |
| Deprecated Model # | |
| Applications | |
| Voltage | 8 |
| Capacity (Nominal) | 3.2 Ah @20 Hr |
| Capacity @20 Hr | 3.2 |
| Capacity @10 Hr | 3.03 |
| Capacity @1 Hr | 1.92 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | 38 mOhms |
| Maximum Current | 48 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 9.0-9.2 V @ 25C |
| Cycle Charge Voltage | 9.6-10.0 V @ 25C |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 5.28 |
| Width (In) | 1.44 |
| Height - Case (In) | 2.48 |
| Height - Overall (In) | 2.72 |
| Length (mm) | 134 |
| Width (mm) | 36.5 |
| Height - Case (mm) | 63 |
| Height - Overall (mm) | 69 |
| Weight (lb) | 1.7 |
| Weight (kg) | 0.75 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
