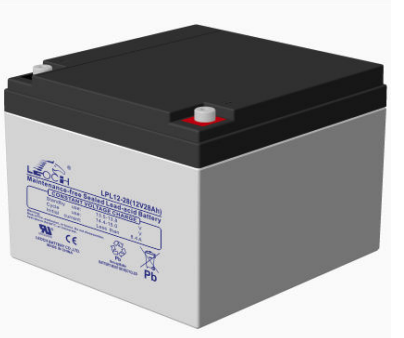

Leoch LPL12-28 SLA (AGM) Battery

Leoch LPL Series LPL12-28 12 Volt / 28 Ah @20 Hr Battery with Nut & Bolt Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch LPL Series LPL12-28 12 Volt / 28 Ah @20 Hr Battery with Nut & Bolt Terminals

Specifications
Battery Store SKU LE-LPL12-28NB
Dimensions 6.5″ (L) x 6.9″ (W) x 4.9″ (H)
Dimensions (mm) 166 mm (L) x 175 mm (W) x 125 mm (H)
Weight 18.9 lbs (8.6 kgs)

Additional information

Weight 18.9 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

LPL Series

Model

LPL12-28

Terminal

Nut & Bolt

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

LPL12-28

Manufacturers SKU

LPL12-28

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

28 Ah @20 Hr

Capacity @20 Hr

28

Capacity @10 Hr

26.3

Capacity @1 Hr

18.4

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

10-12 Years

Service Life
Shelf Life

6 Months

Internal Resistance

12 mOhms

Maximum Current

420 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

13.5-13.8 V @ 25C

Cycle Charge Voltage

14.4-15.0 V @ 25C

Maximum Charge Current
Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

6.5

Width (In)

6.9

Height - Case (In)

4.9

Height - Overall (In)

4.9

Length (mm)

166

Width (mm)

175

Height - Case (mm)

125

Height - Overall (mm)

125

Weight (lb)

18.9

Weight (kg)

8.6

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
