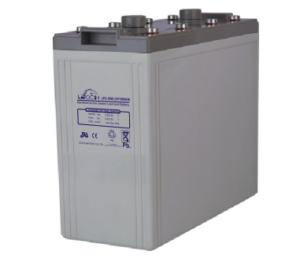

Leoch LPL2-1000 SLA (AGM) Battery
Leoch LPL Series LPL2-1000 2 Volt / 1000 Ah @10 Hr Battery with Recessed M8 Terminals
Loading...
Description
Leoch LPL Series LPL2-1000 2 Volt / 1000 Ah @10 Hr Battery with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LPL2-1000R |
| Dimensions | 18.7″ (L) x 6.9″ (W) x 12.9″ (H) |
| Dimensions (mm) | 475 mm (L) x 175 mm (W) x 328 mm (H) |
| Weight | 132 lbs (60 kgs) |
Additional information
| Weight | 132 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | LPL Series |
| Model | LPL2-1000 |
| Terminal | Recessed M8 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | LPL2-1000 |
| Manufacturers SKU | LPL2-1000 |
| Deprecated Model # | |
| Applications | |
| Voltage | 2 |
| Capacity (Nominal) | 1000 Ah @10 Hr |
| Capacity @20 Hr | 1060 |
| Capacity @10 Hr | 1000 |
| Capacity @1 Hr | 614 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 10-12 Years |
| Service Life | |
| Shelf Life | 6 Months |
| Internal Resistance | 0.3 mOhms |
| Maximum Current | 8000 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 2.23-2.27 V @ 25C |
| Cycle Charge Voltage | 2.4-2.5 V @ 25C |
| Maximum Charge Current | |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 18.7 |
| Width (In) | 6.9 |
| Height - Case (In) | 12.9 |
| Height - Overall (In) | 13.8 |
| Length (mm) | 475 |
| Width (mm) | 175 |
| Height - Case (mm) | 328 |
| Height - Overall (mm) | 350 |
| Weight (lb) | 132 |
| Weight (kg) | 60 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |

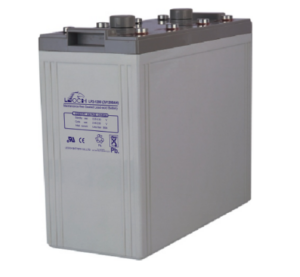

Similar Products from this Brand
