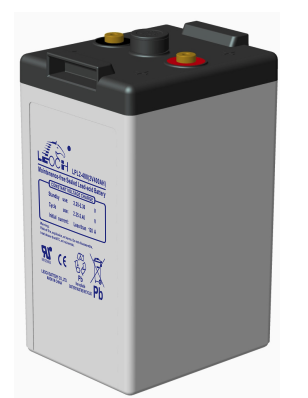

Leoch LPL2-400M SLA (AGM) Battery

Leoch LPL Series LPL2-400M 2 Volt / 400 Ah @10 Hr Battery with Recessed M8 Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch LPL Series LPL2-400M 2 Volt / 400 Ah @10 Hr Battery with Recessed M8 Terminals

Specifications
Battery Store SKU LE-LPL2-400MR
Dimensions 6.2″ (L) x 7.1″ (W) x 13.8″ (H)
Dimensions (mm) 158 mm (L) x 181 mm (W) x 350 mm (H)
Weight 49.9 lbs (22.7 kgs)

Additional information

Weight 49.9 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

LPL Series

Model

LPL2-400M

Terminal

Recessed M8

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

LPL2-400M

Manufacturers SKU

LPL2-400M

Deprecated Model #
Applications
Voltage

2

Capacity (Nominal)

400 Ah @10 Hr

Capacity @20 Hr

424

Capacity @10 Hr

400

Capacity @1 Hr

253

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life

16 Years

Service Life
Shelf Life

6 Months

Internal Resistance

0.6 mOhms

Maximum Current

3200 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

2.23-2.27 V @ 25C

Cycle Charge Voltage

2.4-2.5 V @ 25C

Maximum Charge Current
Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

6.2

Width (In)

7.1

Height - Case (In)

13.8

Height - Overall (In)

14.4

Length (mm)

158

Width (mm)

181

Height - Case (mm)

350

Height - Overall (mm)

365

Weight (lb)

49.9

Weight (kg)

22.7

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
