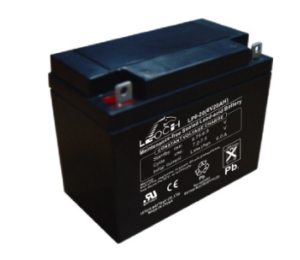

Leoch LPL6-18 SLA (AGM) Battery
Leoch LPL Series LPL6-18 6 Volt / 18 Ah @20 Hr Battery with Nut & Bolt Terminals
Loading...
Description
Leoch LPL Series LPL6-18 6 Volt / 18 Ah @20 Hr Battery with Nut & Bolt Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-LPL6-18NB |
| Dimensions | 6.2″ (L) x 3.3″ (W) x 4.9″ (H) |
| Dimensions (mm) | 157 mm (L) x 83 mm (W) x 125 mm (H) |
| Weight | 7.1 lbs (3.21 kgs) |
Additional information
| Weight | 7.1 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | LPL Series |
| Model | LPL6-18 |
| Terminal | Nut & Bolt |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | LPL6-18 |
| Manufacturers SKU | LPL6-18 |
| Deprecated Model # | |
| Applications | |
| Voltage | 6 |
| Capacity (Nominal) | 18 Ah @20 Hr |
| Capacity @20 Hr | 18 |
| Capacity @10 Hr | 17.9 |
| Capacity @1 Hr | 13 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 10-12 Years |
| Service Life | |
| Shelf Life | 6 Months |
| Internal Resistance | 9.0 mOhms |
| Maximum Current | 270 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 6.75-6.9 V @ 25C |
| Cycle Charge Voltage | 7.2-7.5 V @ 25C |
| Maximum Charge Current | |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 6.2 |
| Width (In) | 3.3 |
| Height - Case (In) | 4.9 |
| Height - Overall (In) | 4.9 |
| Length (mm) | 157 |
| Width (mm) | 83 |
| Height - Case (mm) | 125 |
| Height - Overall (mm) | 125 |
| Weight (lb) | 7.1 |
| Weight (kg) | 3.21 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
