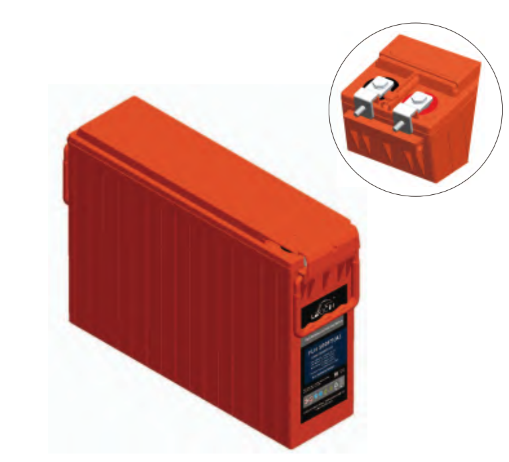

Leoch LE-PLH100FT SLA (AGM) Battery
Leoch PLH Series PLH100FT 12Volt 100Ah Front Terminal
Loading...
Description
Leoch PLH Series PLH100FT 12Volt 100Ah Front Terminal
| Specifications | |
|---|---|
| Battery Store SKU | LE-PLH100FT |
| Dimensions | 15.9″ (L) x 4.25″ (W) x 11.3″ (H) |
| Dimensions (mm) | 405 mm (L) x 108 mm (W) x 287 mm (H) |
| Weight | 69.44 lbs (31.5 kgs) |
Additional information
| Weight | 69.44 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | PXL Series |
| Model | PLX12-400FT |
| Terminal | Threaded Post M6 |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | PLX12-400FT |
| Manufacturers SKU | PLX12-400FT |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 400 W @ 15 Min |
| Capacity @20 Hr | 104 |
| Capacity @10 Hr | 100 |
| Capacity @1 Hr | 70 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Design Life | 15 Years |
| Service Life | |
| Shelf Life | 24 Months |
| Internal Resistance | 4.4 mOhms |
| Maximum Current | 1200 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.62 VDC |
| Cycle Charge Voltage | |
| Maximum Charge Current | |
| Operating Temp Low (°F) | -40 |
| Operating Temp High (°F) | 149 |
| Storage Temp Low (°F) | -4 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -40 |
| Operating Temp High (°C) | 65 |
| Storage Temp Low (°C) | -20 |
| Storage Temp High (°C) | 40 |
| Length (In) | 15.9 |
| Width (In) | 4.25 |
| Height - Case (In) | 11.3 |
| Height - Overall (In) | 11.3 |
| Length (mm) | 405 |
| Width (mm) | 108 |
| Height - Case (mm) | 287 |
| Height - Overall (mm) | 287 |
| Weight (lb) | 69.44 |
| Weight (kg) | 31.5 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
