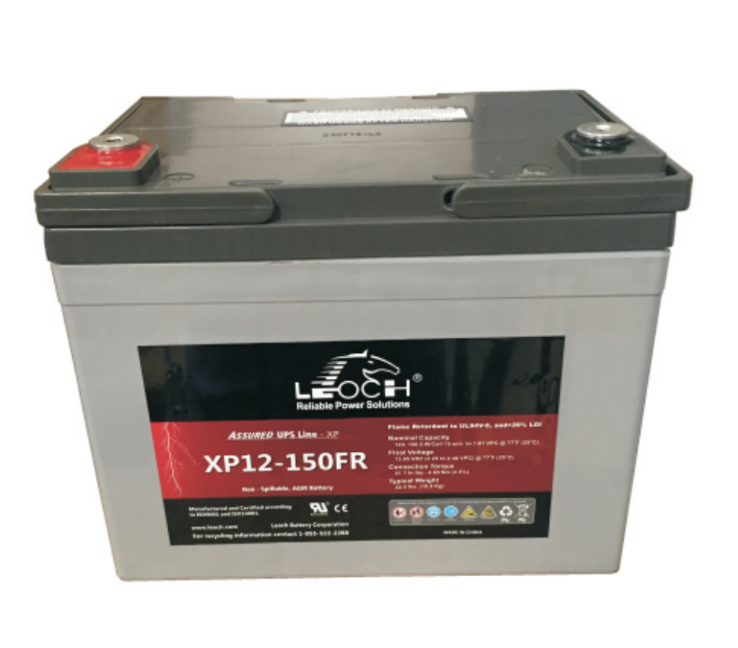

Leoch XP12-150 SLA (AGM) Battery
Leoch XP Series XP12-150 12 Volt / 150 W @15 Min Battery with Recessed M6 Terminals
Loading...
Description
Leoch XP Series XP12-150 12 Volt / 150 W @15 Min Battery with Recessed M6 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-XP12-150R |
| Dimensions | 7.68″ (L) x 5.12″ (W) x 6.46″ (H) |
| Dimensions (mm) | 195 mm (L) x 130 mm (W) x 164 mm (H) |
| Weight | 22.4 lbs (10.2 kgs) |
Additional information
| Weight | 22.4 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | XP Series |
| Model | XP12-150 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | XP12-150 |
| Manufacturers SKU | XP12-150 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 150 W @15 Min |
| Capacity @20 Hr | 35 |
| Capacity @10 Hr | 33.5 |
| Capacity @1 Hr | 26.2 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | |
| Internal Resistance | 7.0 mOhms |
| Maximum Current | 630 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 VDC |
| Cycle Charge Voltage | |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 7.68 |
| Width (In) | 5.12 |
| Height - Case (In) | 6.46 |
| Height - Overall (In) | 6.57 |
| Length (mm) | 195 |
| Width (mm) | 130 |
| Height - Case (mm) | 164 |
| Height - Overall (mm) | 167 |
| Weight (lb) | 22.4 |
| Weight (kg) | 10.2 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
