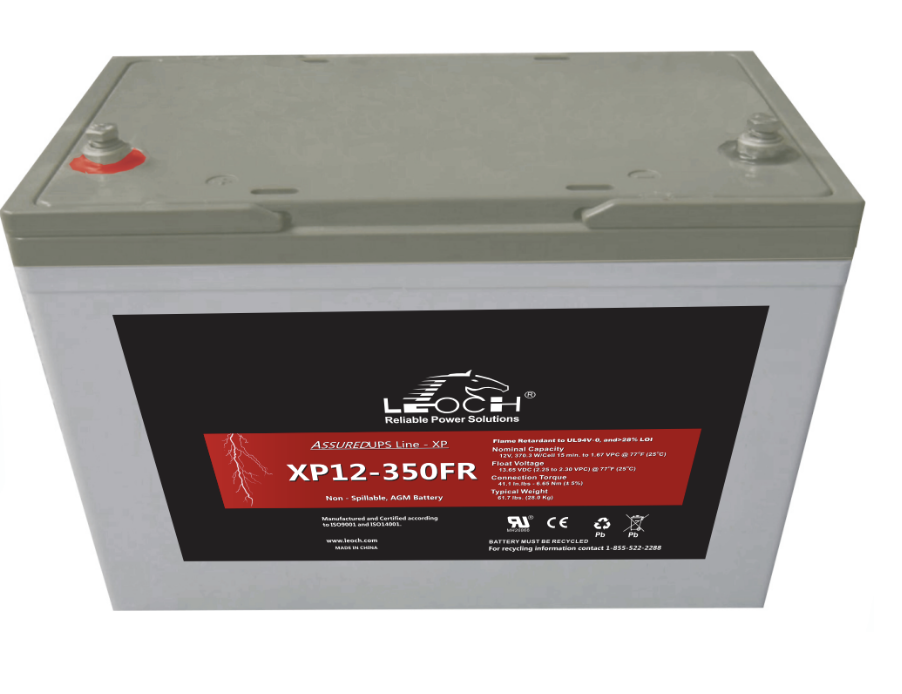

Leoch XP12-350 SLA (AGM) Battery

Leoch XP Series XP12-350 12 Volt / 374 W @15 Min Battery with Recessed M6 Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch XP Series XP12-350 12 Volt / 374 W @15 Min Battery with Recessed M6 Terminals

Specifications
Battery Store SKU LE-XP12-350R
Dimensions 12.05″ (L) x 6.61″ (W) x 8.19″ (H)
Dimensions (mm) 306 mm (L) x 168 mm (W) x 208 mm (H)
Weight 62 lbs (28.2 kgs)

Additional information

Weight 62 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

XP Series

Model

XP12-350

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

XP12-350

Manufacturers SKU

XP12-350

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

374 W @15 Min

Capacity @20 Hr

95

Capacity @10 Hr

90.7

Capacity @1 Hr

66.3

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life
Shelf Life
Internal Resistance

4.0 mOhms

Maximum Current

1425 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 VDC

Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

12.05

Width (In)

6.61

Height - Case (In)

8.19

Height - Overall (In)

8.31

Length (mm)

306

Width (mm)

168

Height - Case (mm)

208

Height - Overall (mm)

211

Weight (lb)

62

Weight (kg)

28.2

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
