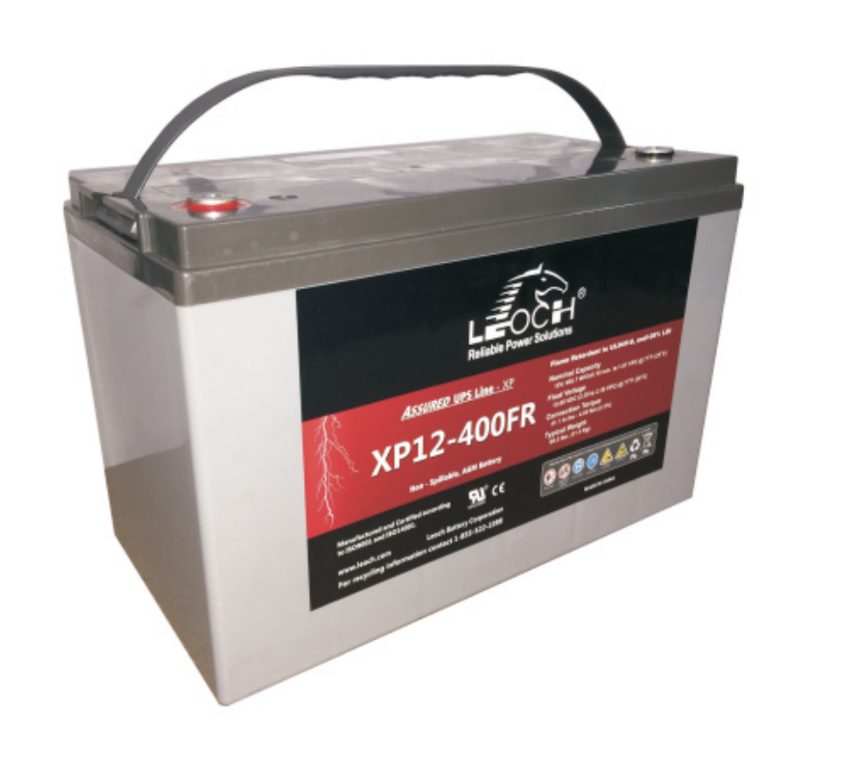

Leoch XP12-400 SLA (AGM) Battery

Leoch XP Series XP12-400 12 Volt / 422 W @15 Min Battery with Recessed M6 Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch XP Series XP12-400 12 Volt / 422 W @15 Min Battery with Recessed M6 Terminals

Specifications
Battery Store SKU LE-XP12-400R
Dimensions 12.81″ (L) x 6.69″ (W) x 8.39″ (H)
Dimensions (mm) 325.5 mm (L) x 170 mm (W) x 213 mm (H)
Weight 69.5 lbs (31.6 kgs)

Additional information

Weight 69.5 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

XP Series

Model

XP12-400

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

XP12-400

Manufacturers SKU

XP12-400

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

422 W @15 Min

Capacity @20 Hr

101.6

Capacity @10 Hr

96

Capacity @1 Hr

69.5

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life
Shelf Life
Internal Resistance

3.6 mOhms

Maximum Current

1655 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 VDC

Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

12.81

Width (In)

6.69

Height - Case (In)

8.39

Height - Overall (In)

8.5

Length (mm)

325.5

Width (mm)

170

Height - Case (mm)

213

Height - Overall (mm)

216

Weight (lb)

69.5

Weight (kg)

31.6

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
