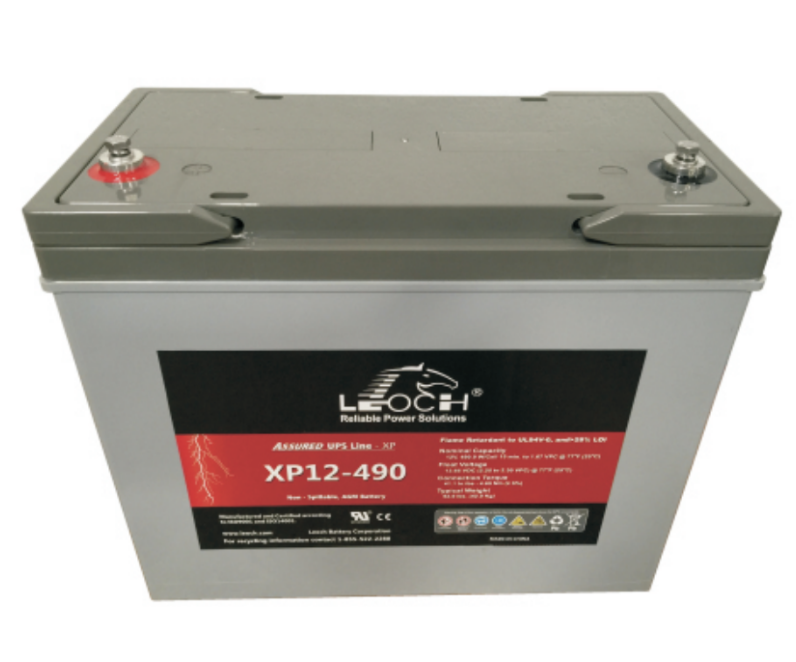

Leoch XP12-490 SLA (AGM) Battery

Leoch XP Series XP12-490 12 Volt / 506 W @15 Min Battery with Recessed M6 Terminals

This product is currently out of stock and unavailable.

Loading...

Description

Leoch XP Series XP12-490 12 Volt / 506 W @15 Min Battery with Recessed M6 Terminals

Specifications
Battery Store SKU LE-XP12-490R
Dimensions 13.19″ (L) x 6.77″ (W) x 10.83″ (H)
Dimensions (mm) 335 mm (L) x 172 mm (W) x 275 mm (H)
Weight 93.7 lbs (42.6 kgs)

Additional information

Weight 93.7 lbs
Manufacturer

Leoch

price-discounts
Product Line
Product Series

XP Series

Model

XP12-490

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

XP12-490

Manufacturers SKU

XP12-490

Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

506 W @15 Min

Capacity @20 Hr

142

Capacity @10 Hr

136

Capacity @1 Hr

99.4

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life
Shelf Life
Internal Resistance

3.8 mOhms

Maximum Current

1846 Amps

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 VDC

Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

13.19

Width (In)

6.77

Height - Case (In)

10.83

Height - Overall (In)

10.94

Length (mm)

335

Width (mm)

172

Height - Case (mm)

275

Height - Overall (mm)

278

Weight (lb)

93.7

Weight (kg)

42.6

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
