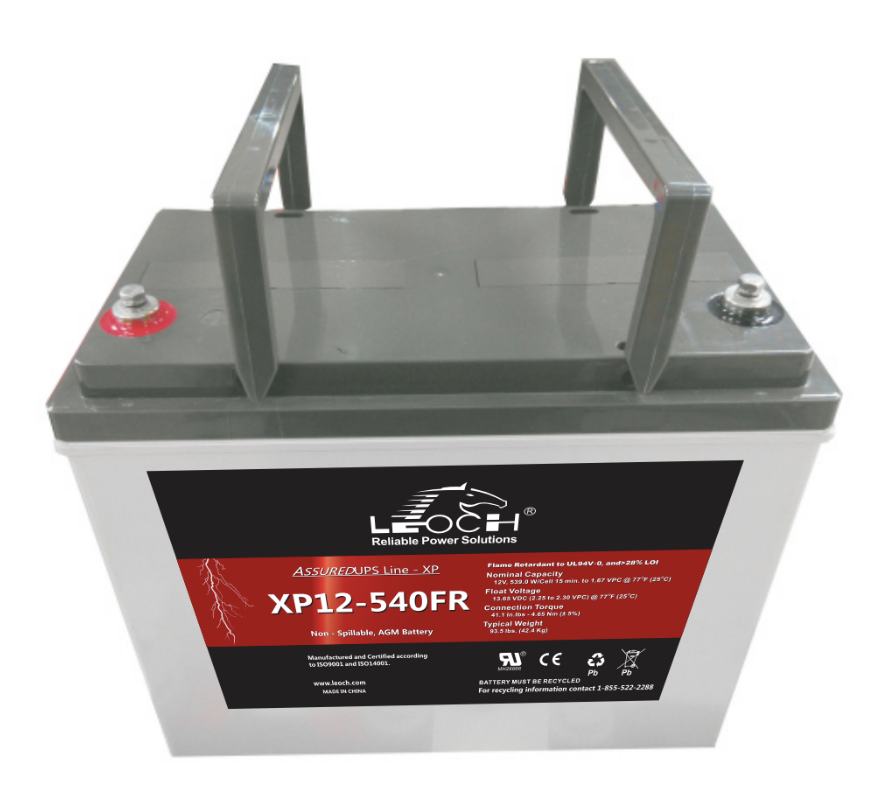

Leoch XP12-540 SLA (AGM) Battery
Leoch XP Series XP12-540 12 Volt / 540 W @15 Min Battery with Recessed M6 Terminals
Loading...
Description
Leoch XP Series XP12-540 12 Volt / 540 W @15 Min Battery with Recessed M6 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | LE-XP12-540R |
| Dimensions | 13.19″ (L) x 6.77″ (W) x 10.83″ (H) |
| Dimensions (mm) | 335 mm (L) x 172 mm (W) x 275 mm (H) |
| Weight | 93.7 lbs (42.6 kgs) |
Additional information
| Weight | 93.7 lbs |
|---|---|
| Manufacturer | Leoch |
| price-discounts | |
| Product Line | |
| Product Series | XP Series |
| Model | XP12-540 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | XP12-540 |
| Manufacturers SKU | XP12-540 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 540 W @15 Min |
| Capacity @20 Hr | 155 |
| Capacity @10 Hr | 147 |
| Capacity @1 Hr | 105.6 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | |
| Internal Resistance | 3.8 mOhms |
| Maximum Current | 2015 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 VDC |
| Cycle Charge Voltage | |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 13.19 |
| Width (In) | 6.77 |
| Height - Case (In) | 10.83 |
| Height - Overall (In) | 10.94 |
| Length (mm) | 335 |
| Width (mm) | 172 |
| Height - Case (mm) | 275 |
| Height - Overall (mm) | 278 |
| Weight (lb) | 93.7 |
| Weight (kg) | 42.6 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |

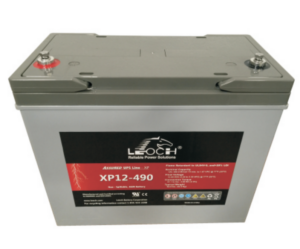

Similar Products from this Brand
