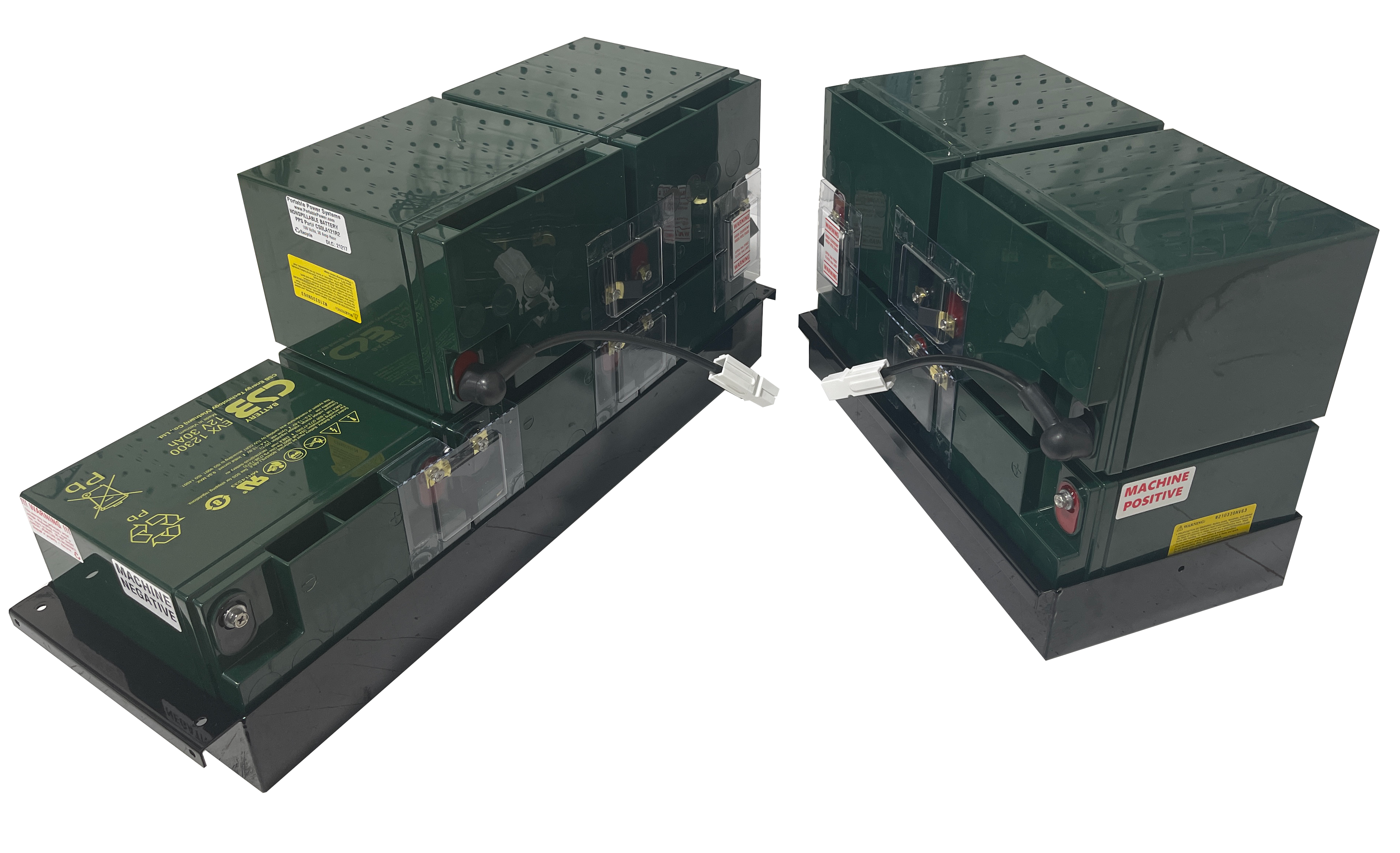

GE AMX-4 Battery System w/OEM CSB Batteries, No Sense

$1,500.00

(Replaces # 46-329314G7) Fits GE AMX-4, AMX-4+, AMX-4 Plus – 108 Volt / 30 Ah @20 Hr using OEM CSB EVX12300 batteries. Without sense board. Complete kit to convert to tray system, easier installation and maintenance.

25 in stock

Loading...

Description

(Replaces # 46-329314G7) Fits GE AMX-4, AMX-4+, AMX-4 Plus – 108 Volt / 30 Ah @20 Hr using OEM CSB EVX12300 batteries. Without sense board. Complete kit to convert to tray system, easier installation and maintenance.

Specifications
Battery Store SKU PP-XR4108-30C
Dimensions 22.00″ (L) x 14.75″ (W) x 10.00″ (H)
Dimensions (mm) 559 mm (L) x 375 mm (W) x 255 mm (H)
Weight 300 lbs (136 kgs)

Product Notes

Uses OEM CSB EVX12300 12V/30Ah batteries. Pre-assembled without sense board, shipped on pallet.

Additional information

Weight 300 lbs
Manufacturer

Portable Power

price-discounts
Product Line

Medical

Product Series

OEM Series

Model

GE AMX-4

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

XR4108-30C

Manufacturers SKU

46-329314G7

Deprecated Model #
Applications

GE AMX-4 mobile x-ray machines

Voltage

108

Capacity (Nominal)

30 Ah @20 Hr

Capacity @20 Hr

30

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life
Service Life
Shelf Life

12

Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage
Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

22.00

Width (In)

14.75

Height - Case (In)

10.00

Height - Overall (In)

10.00

Length (mm)

559

Width (mm)

375

Height - Case (mm)

255

Height - Overall (mm)

255

Weight (lb)

300

Weight (kg)

136

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

1

Qty Per Pallet

1
