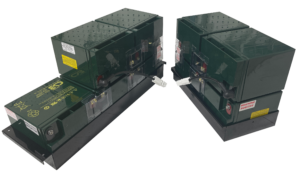

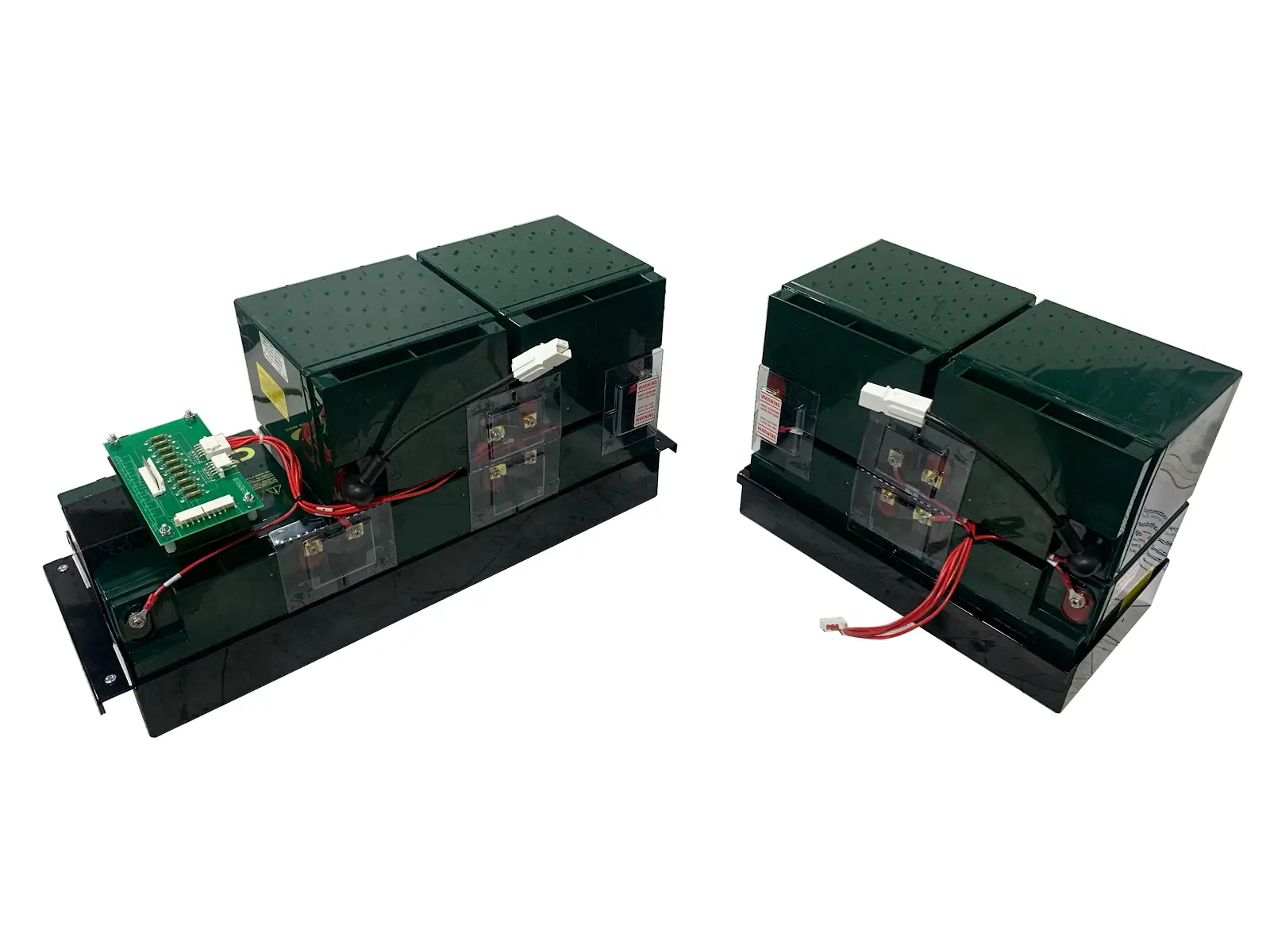

GE AMX-4 Battery System w/OEM CSB Batteries
$1,625.00
(Replaces # 46-329314G7) Fits GE AMX-4, AMX-4+, AMX-4 Plus – 108 Volt / 30 Ah @20 Hr using OEM CSB EVX12300 batteries. With sense board. Complete kit to convert to tray system, easier installation and maintenance.
41 in stock
Description
(Replaces # 46-329314G7) Fits GE AMX-4, AMX-4+, AMX-4 Plus – 108 Volt / 30 Ah @20 Hr using OEM CSB EVX12300 batteries. With sense board. Complete kit to convert to tray system, easier installation and maintenance.
| Specifications | |
|---|---|
| Battery Store SKU | PP-XR4108-30CS |
| Dimensions | 22.00″ (L) x 14.75″ (W) x 10.00″ (H) |
| Dimensions (mm) | 559 mm (L) x 375 mm (W) x 255 mm (H) |
| Weight | 300 lbs (136 kgs) |
Product Notes
Uses OEM CSB EVX12300 12V/30Ah batteries. Pre-assembled with sense board, shipped on pallet.
Additional information
| Weight | 300 lbs |
|---|---|
| Manufacturer | Portable Power |
| price-discounts | |
| Product Line | Medical |
| Product Series | OEM Series |
| Model | GE AMX-4 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | XR4108-30CS |
| Manufacturers SKU | 46-329314G7 |
| Deprecated Model # | |
| Applications | GE AMX-4 mobile x-ray machines |
| Voltage | 108 |
| Capacity (Nominal) | 30 Ah @20 Hr |
| Capacity @20 Hr | 30 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | |
| Service Life | |
| Shelf Life | 12 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | |
| Cycle Charge Voltage | |
| Maximum Charge Current | |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 22.00 |
| Width (In) | 14.75 |
| Height - Case (In) | 10.00 |
| Height - Overall (In) | 10.00 |
| Length (mm) | 559 |
| Width (mm) | 375 |
| Height - Case (mm) | 255 |
| Height - Overall (mm) | 255 |
| Weight (lb) | 300 |
| Weight (kg) | 136 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 1 |
| Qty Per Pallet | 1 |
