Philips BV 300 Plus / Pulsara C-arm / Veradius / Zenition 70
$2,150.00

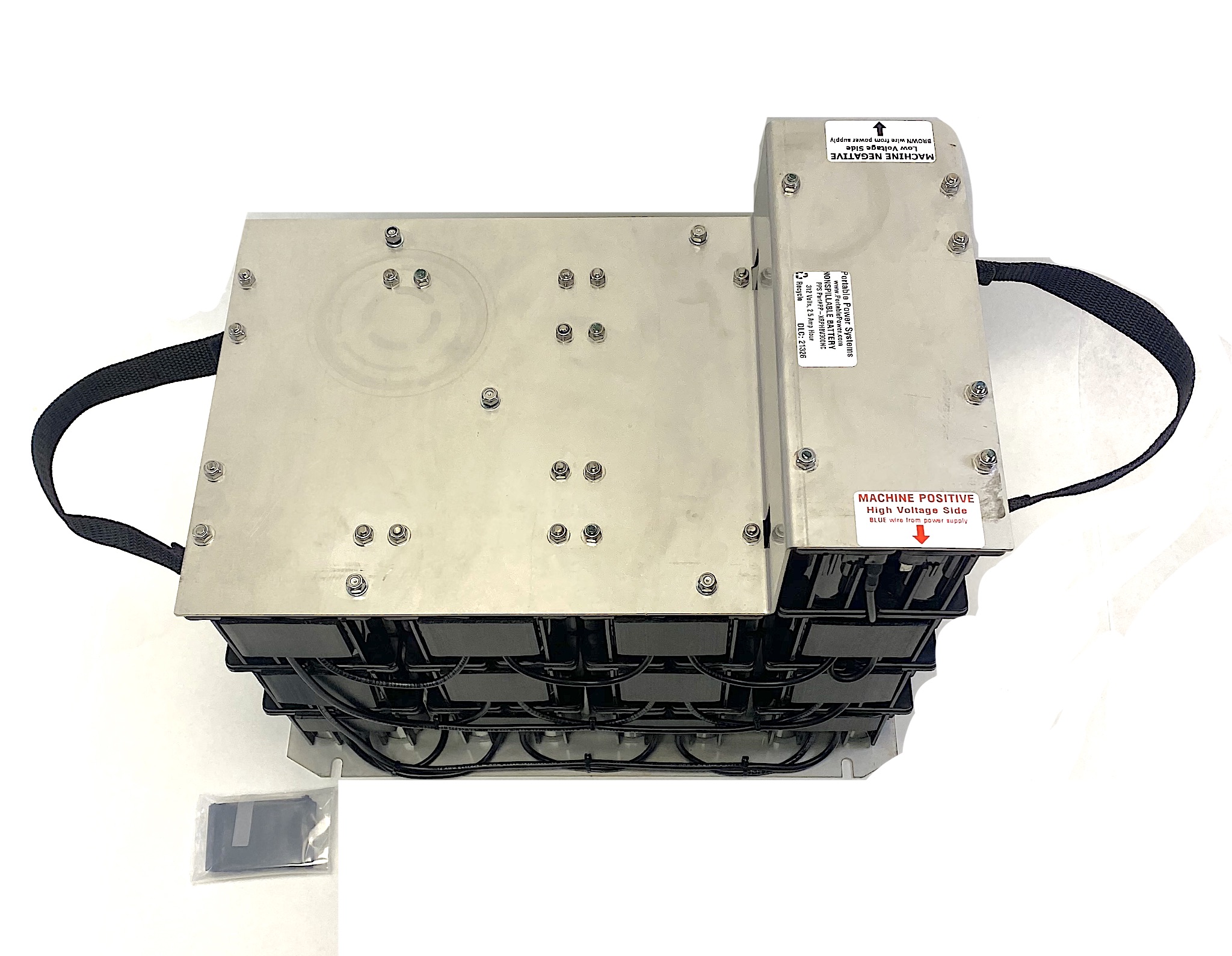

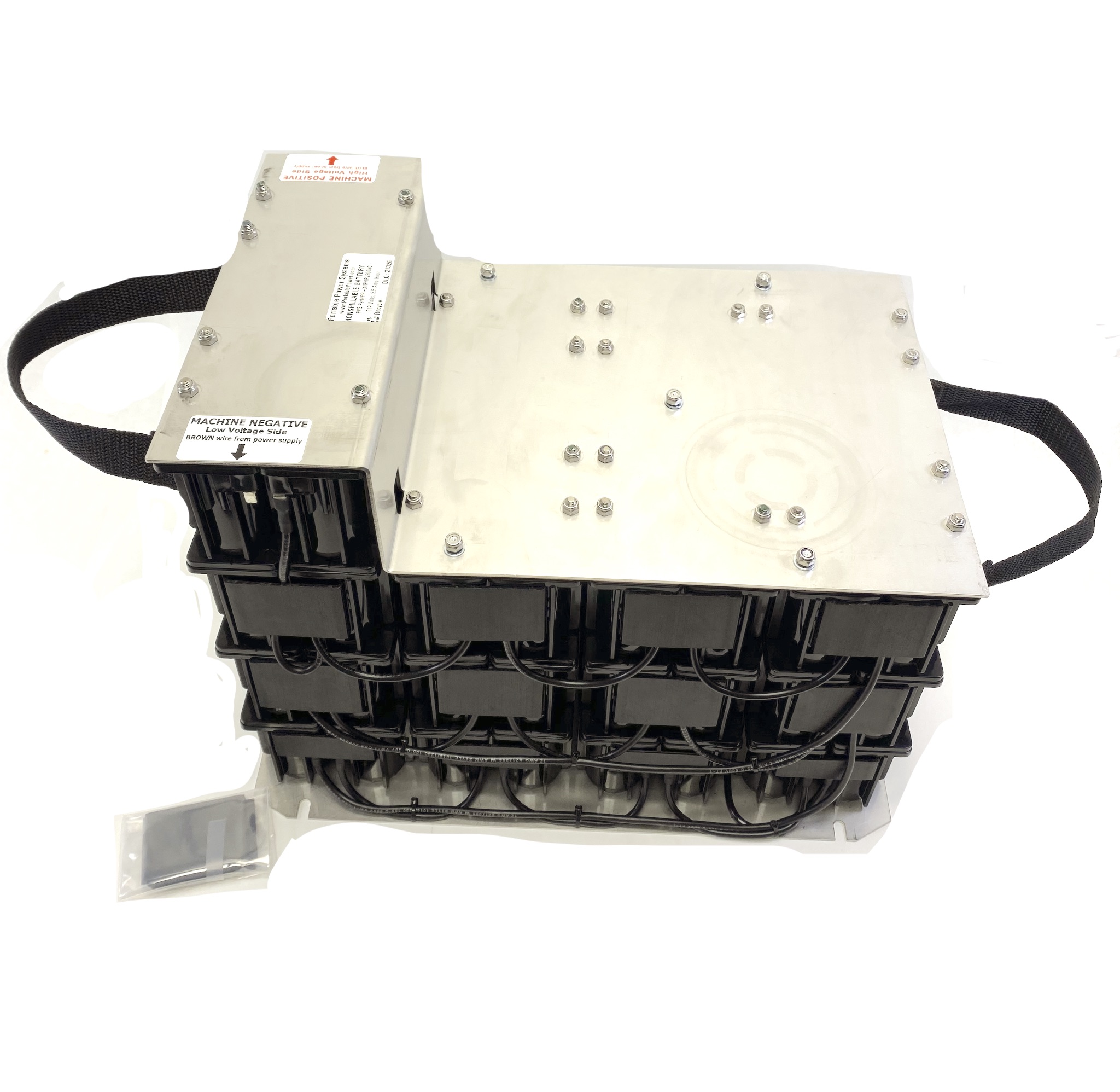

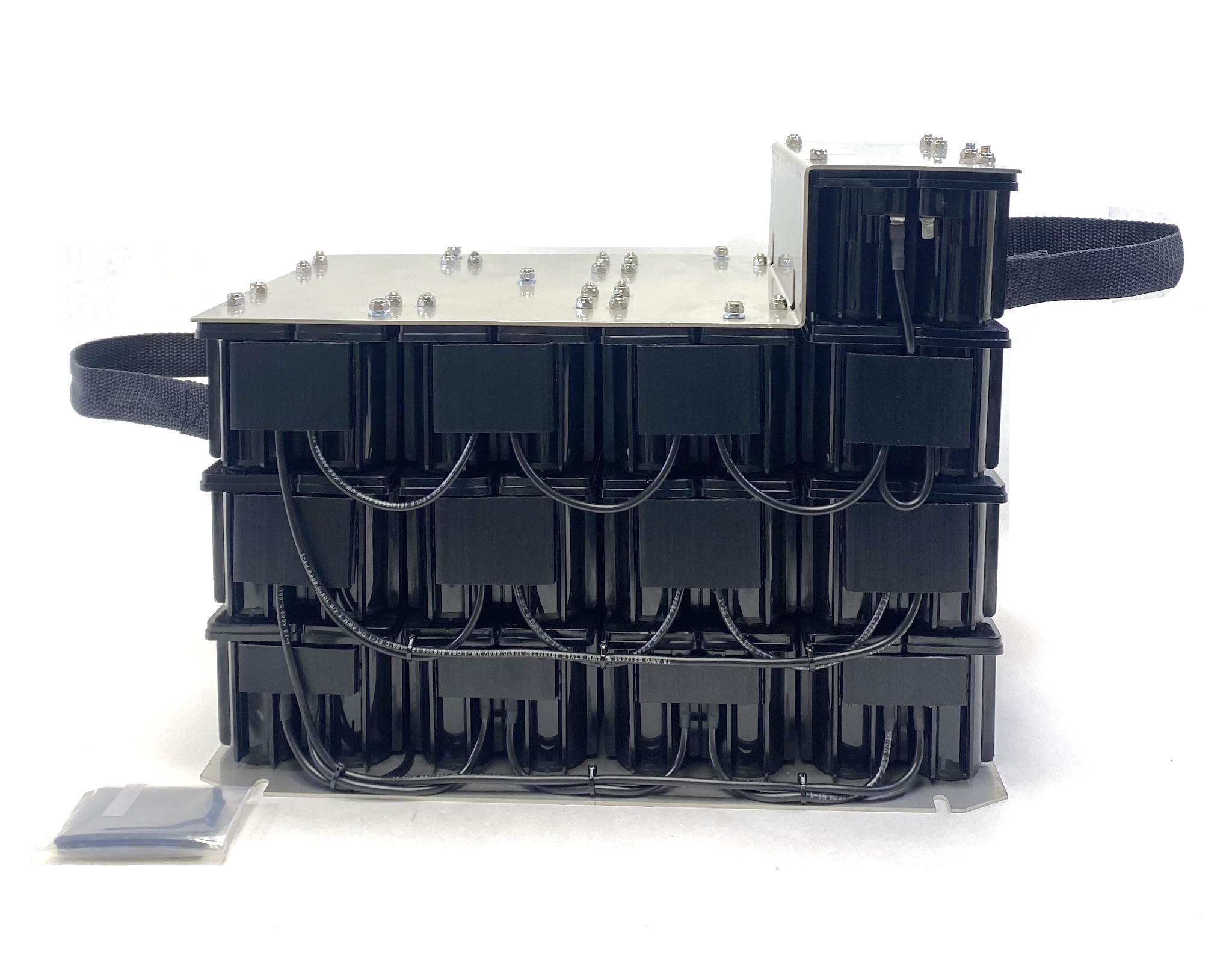

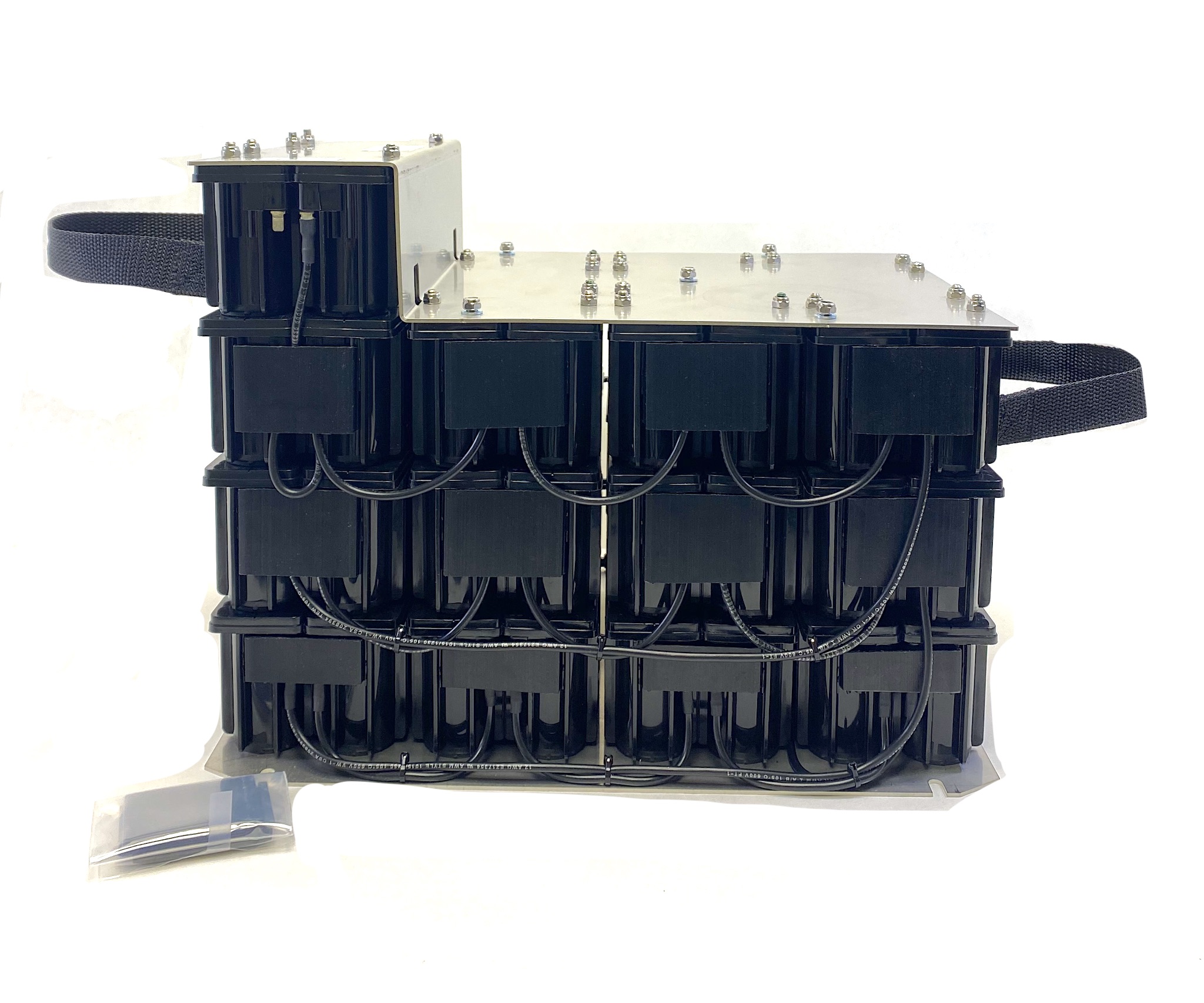

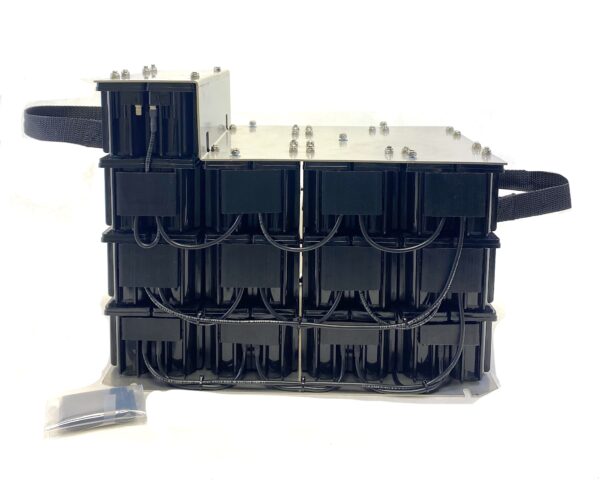

(Replaces # ) Fits Philips BV 300 Plus / Pulsara C-arm / Veradius / Zenition 70- 312 Volt / 2.5 Ah @ 10 Hr using OEM EnerSys Cyclon 0819-0012 batteries.
17 in stock
Loading...
Description
(Replaces # ) Fits Philips BV 300 Plus / Pulsara C-arm / Veradius / Zenition 70- 312 Volt / 2.5 Ah @ 10 Hr using OEM EnerSys Cyclon 0819-0012 batteries.
| Specifications | |
|---|---|
| Battery Store SKU | PP-XRPHBV300NC |
| Dimensions | 14.25″ (L) x 9.00″ (W) x 11.00″ (H) |
| Dimensions (mm) | 362 mm (L) x 229 mm (W) x 279 mm (H) |
| Weight | 69.3 lbs (31.5 kgs) |
Product Notes
Uses OEM EnerSys CYCLON batteries. Direct Plug-n-Play operation. No charger included. Verify current charger is working properly before ordering.
Additional information
| Weight | 69.3 lbs |
|---|---|
| Manufacturer | Portable Power |
| Product Line | Medical |
| Product Series | OEM Series |
| Model | Philips BV300 |
| Terminal | F1 (0.187") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | XRPHBV300NC |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | Philips BV 300 Plus / Pulsara C-arm / Veradius |
| Voltage | 312 |
| Capacity (Nominal) | 2.5 Ah @ 10 Hr |
| Capacity @20 Hr | 2.6 |
| Capacity @10 Hr | 2.5 |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Design Life | |
| Service Life | |
| Shelf Life | 24 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | |
| Cycle Charge Voltage | |
| Maximum Charge Current | |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 14.25 |
| Width (In) | 9.00 |
| Height - Case (In) | 11.00 |
| Height - Overall (In) | 11.00 |
| Length (mm) | 362 |
| Width (mm) | 229 |
| Height - Case (mm) | 279 |
| Height - Overall (mm) | 279 |
| Weight (lb) | 69.3 |
| Weight (kg) | 31.5 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 1 |
| Qty Per Pallet |
