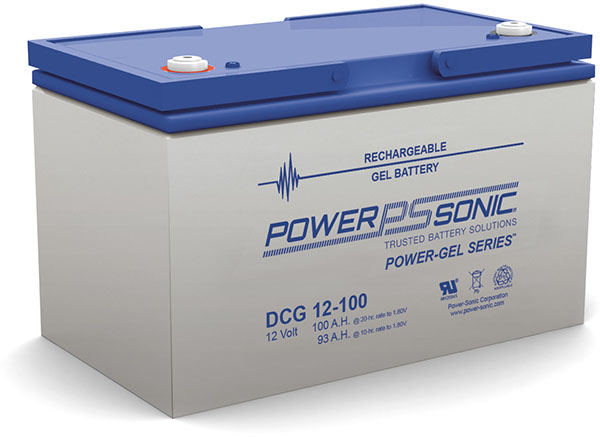

PowerSonic DCG12-100 Lead Acid Battery
PowerSonic DCG Series DCG12-100 12 Volt / 100 Ah @20 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case
Loading...
Description
PowerSonic DCG Series DCG12-100 12 Volt / 100 Ah @20 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-DCG12-100R |
| Dimensions | 12.99″ (L) x 6.81″ (W) x 8.35″ (H) |
| Dimensions (mm) | 330 mm (L) x 173 mm (W) x 212 mm (H) |
| Weight | 67.848 lbs (30.84 kgs) |
Product Notes
Superior cyclic life to AGM technology
Additional information
| Weight | 67.848 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces) |
| Product Series | DCG Series |
| Model | DCG12-100 |
| Terminal | Recessed M8 |
| Case Material | ABS Plastic |
| Manufacturers Model # | DCG12-100 |
| Voltage | 12 |
| Capacity (Nominal) | 100 Ah @20 Hr |
| Capacity @20 Hr | 100 |
| Capacity @10 Hr | 93 |
| Capacity @1 Hr | 55 |
| Chemistry | Lead Acid |
| Technology | Gel |
| Shelf Life | 12 |
| Internal Resistance | 5.0 mOhm |
| Cycles @ 80% Discharge | 600 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 12.99 |
| Width (In) | 6.81 |
| Height - Case (In) | 8.35 |
| Height - Overall (In) | 8.35 |
| Length (mm) | 330 |
| Width (mm) | 173 |
| Height - Case (mm) | 212 |
| Height - Overall (mm) | 212 |
| Weight (lb) | 67.848 |
| Weight (kg) | 30.84 |
