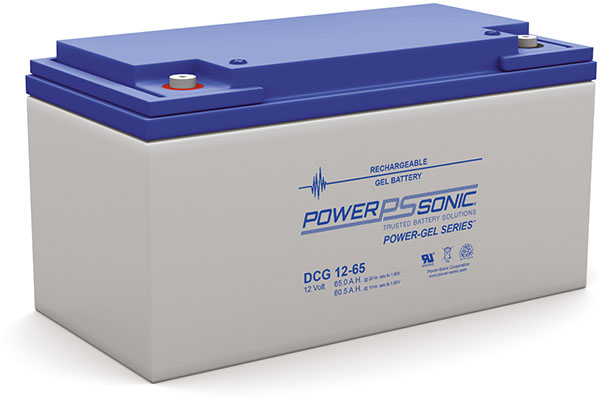

PowerSonic DCG12-65 Lead Acid Battery
PowerSonic DCG Series DCG12-65 12 Volt / 65 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / ABS Plastic Case
Loading...
Description
PowerSonic DCG Series DCG12-65 12 Volt / 65 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-DCG12-65R |
| Dimensions | 12.80″ (L) x 6.57″ (W) x 6.85″ (H) |
| Dimensions (mm) | 325 mm (L) x 167 mm (W) x 174 mm (H) |
| Weight | 52.8 lbs (24 kgs) |
Product Notes
Superior cyclic life to AGM technology
Additional information
| Weight | 52.8 lbs |
|---|---|
| Manufacturer | PowerSonic |
| Product Series | DCG Series |
| Model | DCG12-65 |
| Terminal | Recessed M6 |
| Case Material | ABS Plastic |
| Manufacturers Model # | DCG12-65 |
| Voltage | 12 |
| Capacity (Nominal) | 65 Ah @20 Hr |
| Capacity @20 Hr | 65 |
| Capacity @10 Hr | 60.5 |
| Capacity @1 Hr | 35.8 |
| Chemistry | Lead Acid |
| Technology | Gel |
| Shelf Life | 12 |
| Internal Resistance | 7.9 mOhm |
| Cycles @ 80% Discharge | 600 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 12.80 |
| Width (In) | 6.57 |
| Height - Case (In) | 6.85 |
| Height - Overall (In) | 6.85 |
| Length (mm) | 325 |
| Width (mm) | 167 |
| Height - Case (mm) | 174 |
| Height - Overall (mm) | 174 |
| Weight (lb) | 52.8 |
| Weight (kg) | 24 |
