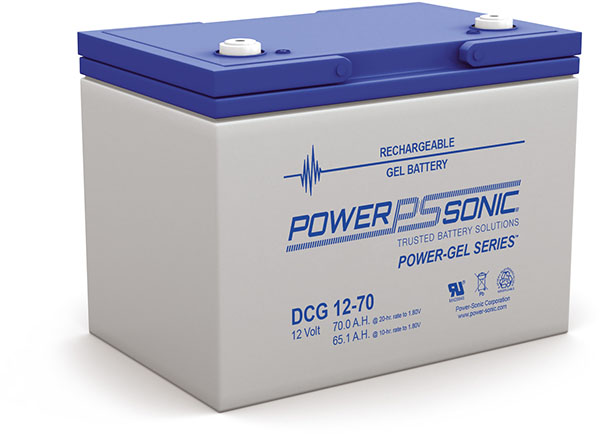

PowerSonic DCG12-70 Lead Acid Battery
As low as $283.50 each
PowerSonic DCG Series DCG12-70 12 Volt / 70 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / ABS Plastic Case
Loading...
Description
PowerSonic DCG Series DCG12-70 12 Volt / 70 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-DCG12-70R |
| Dimensions | 10.24″ (L) x 6.61″ (W) x 8.27″ (H) |
| Dimensions (mm) | 260 mm (L) x 168 mm (W) x 210 mm (H) |
| Weight | 50.886 lbs (23.13 kgs) |
Product Notes
Superior cyclic life to AGM technology
Additional information
| Weight | 50.886 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces), Box/Case (1 pieces), Pallet Layer (20 pieces), Pallet (40 pieces) |
| Product Line | |
| Product Series | DCG Series |
| Model | DCG12-70 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | DCG12-70 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 70 Ah @20 Hr |
| Capacity @20 Hr | 70 |
| Capacity @10 Hr | 65.1 |
| Capacity @1 Hr | 38.5 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | Gel |
| Design Life | |
| Service Life | |
| Shelf Life | 12 |
| Internal Resistance | 6.4 mOhm |
| Maximum Current | |
| Cycles @ 80% Discharge | 600 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 10.24 |
| Width (In) | 6.61 |
| Height - Case (In) | 8.27 |
| Height - Overall (In) | 8.27 |
| Length (mm) | 260 |
| Width (mm) | 168 |
| Height - Case (mm) | 210 |
| Height - Overall (mm) | 210 |
| Weight (lb) | 50.886 |
| Weight (kg) | 23.13 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
