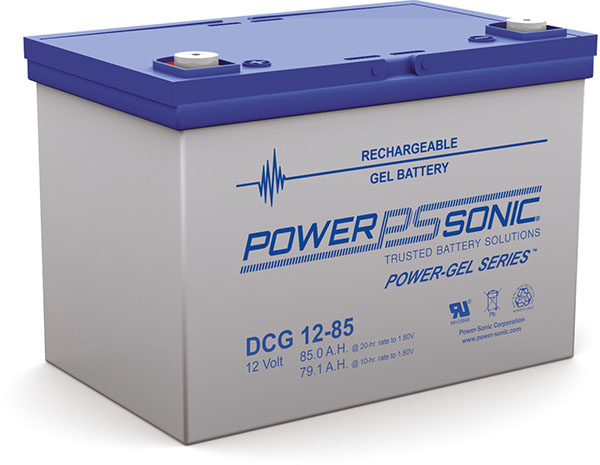

PowerSonic DCG12-85 Lead Acid Battery

PowerSonic DCG Series DCG12-85 12 Volt / 85 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / ABS Plastic Case

Loading...

Description

PowerSonic DCG Series DCG12-85 12 Volt / 85 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-DCG12-85R
Dimensions 12.05″ (L) x 6.61″ (W) x 8.27″ (H)
Dimensions (mm) 306 mm (L) x 168 mm (W) x 210 mm (H)
Weight 59.884 lbs (27.22 kgs)

Product Notes

Superior cyclic life to AGM technology

Additional information

Weight 59.884 lbs
Manufacturer

PowerSonic

price-discounts

Pallet Layer (20 pieces), Pallet (40 pieces)

Product Line
Product Series

DCG Series

Model

DCG12-85

Terminal

Recessed M6

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

DCG12-85

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

85 Ah @20 Hr

Capacity @20 Hr

85

Capacity @10 Hr

78

Capacity @1 Hr

46.8

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

Gel

Design Life
Service Life
Shelf Life

12

Internal Resistance

6.8 mOhm

Maximum Current
Cycles @ 80% Discharge

600

Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

12.05

Width (In)

6.61

Height - Case (In)

8.27

Height - Overall (In)

8.27

Length (mm)

306

Width (mm)

168

Height - Case (mm)

210

Height - Overall (mm)

210

Weight (lb)

59.884

Weight (kg)

27.22

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
