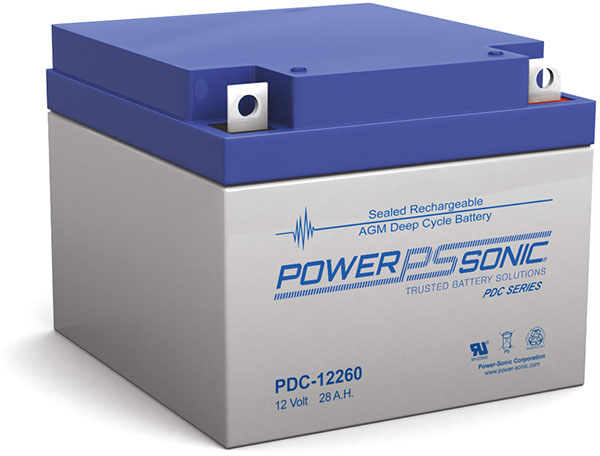

PowerSonic PDC-12260 Lead Acid Battery

As low as $85.80 each

PowerSonic PDC Series PDC-12260 12 Volt / 26 Ah @10 Hr Lead Acid Battery with Nut & Bolt Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PDC Series PDC-12260 12 Volt / 26 Ah @10 Hr Lead Acid Battery with Nut & Bolt Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-PDC-12260NB
Dimensions 6.54″ (L) x 6.89″ (W) x 4.92″ (H)
Dimensions (mm) 166 mm (L) x 175 mm (W) x 125 mm (H)
Weight 20.548 lbs (9.34 kgs)

Additional information

Weight 20.548 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (2 pieces), Pallet Layer (24 pieces), Pallet (72 pieces)

Product Line
Product Series

PDC Series

Model

PDC-12260

Terminal

Nut & Bolt

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

PDC-12260

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

26 Ah @10 Hr

Capacity @20 Hr

27.8

Capacity @10 Hr

26

Capacity @1 Hr

16.8

Capacity @15 Min

10.6

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

Deep Cycle VRLA

Design Life
Service Life
Shelf Life

6

Internal Resistance

13.0 mOhm

Maximum Current

278

Cycles @ 80% Discharge

1200

Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

6.54

Width (In)

6.89

Height - Case (In)

4.92

Height - Overall (In)

4.92

Length (mm)

166

Width (mm)

175

Height - Case (mm)

125

Height - Overall (mm)

125

Weight (lb)

20.548

Weight (kg)

9.34

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
