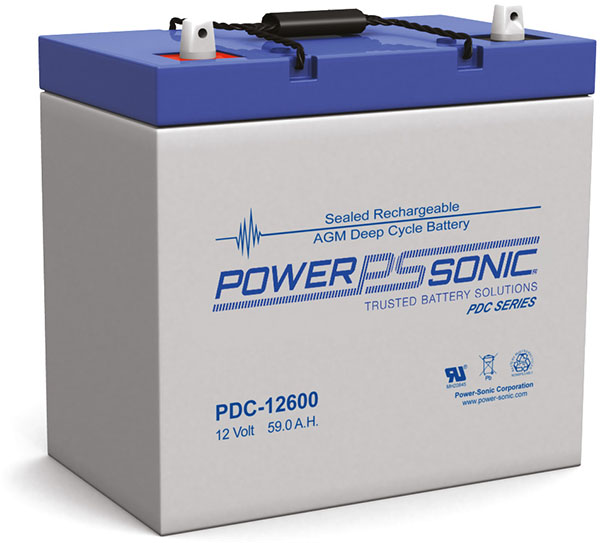

PowerSonic PDC-12600 Lead Acid Battery
As low as $151.50 each
PowerSonic PDC Series PDC-12600 12 Volt / 55 Ah @10 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals / ABS Plastic Case
Loading...
Description
PowerSonic PDC Series PDC-12600 12 Volt / 55 Ah @10 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-PDC-12600UT |
| Dimensions | 9.06″ (L) x 5.43″ (W) x 8.66″ (H) |
| Dimensions (mm) | 230 mm (L) x 138 mm (W) x 220 mm (H) |
| Weight | 38.918 lbs (17.69 kgs) |
Additional information
| Weight | 38.918 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces), Box/Case (1 pieces), Pallet Layer (21 pieces), Pallet (42 pieces) |
| Product Line | |
| Product Series | PDC Series |
| Model | PDC-12600 |
| Terminal | Nut & Bolt (Universal) |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | 813340013490 |
| Manufacturers Model # | PDC-12600 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 55 Ah @10 Hr |
| Capacity @20 Hr | 60 |
| Capacity @10 Hr | 55 |
| Capacity @1 Hr | 35.5 |
| Capacity @15 Min | 27.2 |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | Deep Cycle VRLA |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | 7.5 mOhm |
| Maximum Current | 590 |
| Cycles @ 80% Discharge | 1200 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 9.06 |
| Width (In) | 5.43 |
| Height - Case (In) | 8.66 |
| Height - Overall (In) | 8.66 |
| Length (mm) | 230 |
| Width (mm) | 138 |
| Height - Case (mm) | 220 |
| Height - Overall (mm) | 220 |
| Weight (lb) | 38.918 |
| Weight (kg) | 17.69 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
