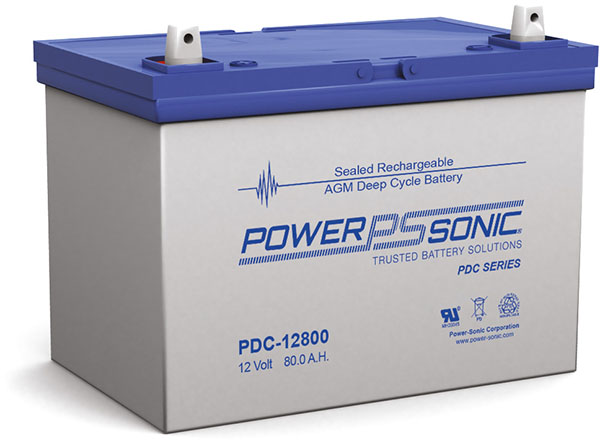

PowerSonic PDC-12800 Lead Acid Battery

As low as $184.50 each

PowerSonic PDC Series PDC-12800 12 Volt / 75 Ah @10 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PDC Series PDC-12800 12 Volt / 75 Ah @10 Hr Lead Acid Battery with Nut & Bolt (Universal) Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-PDC-12800UT
Dimensions 10.24″ (L) x 6.61″ (W) x 8.27″ (H)
Dimensions (mm) 260 mm (L) x 168 mm (W) x 210 mm (H)
Weight 49.896 lbs (22.68 kgs)

Additional information

Weight 49.896 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (1 pieces), Pallet Layer (15 pieces), Pallet (30 pieces)

Product Line
Product Series

PDC Series

Model

PDC-12800

Terminal

Nut & Bolt (Universal)

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340013506

Manufacturers Model #

PDC-12800

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

75 Ah @10 Hr

Capacity @20 Hr

80

Capacity @10 Hr

75

Capacity @1 Hr

48.5

Capacity @15 Min

37.0

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

Deep Cycle VRLA

Design Life
Service Life
Shelf Life

6

Internal Resistance

6.6 mOhm

Maximum Current

800

Cycles @ 80% Discharge

1200

Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

10.24

Width (In)

6.61

Height - Case (In)

8.27

Height - Overall (In)

8.27

Length (mm)

260

Width (mm)

168

Height - Case (mm)

210

Height - Overall (mm)

210

Weight (lb)

49.896

Weight (kg)

22.68

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
