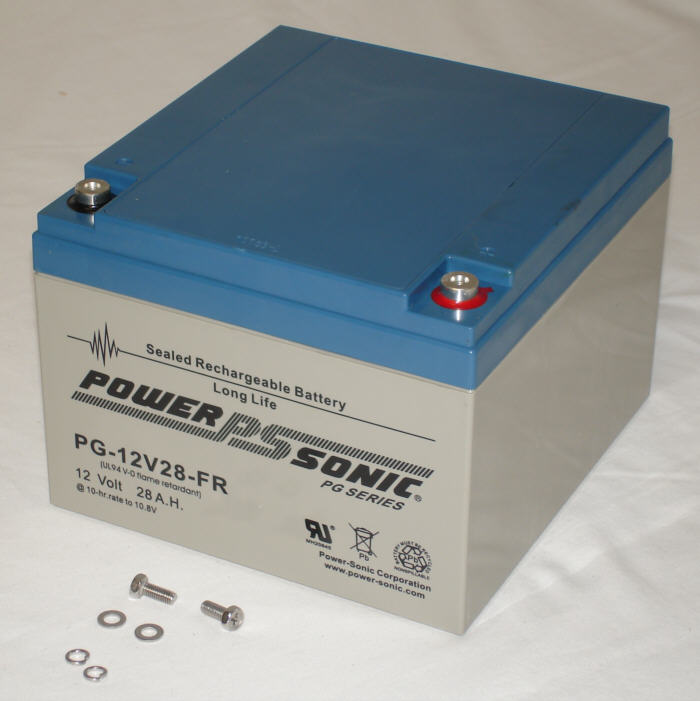

PowerSonic PG-12V28FR Lead Acid Battery

$136.00

PowerSonic PG Series PG-12V28FR 12 Volt / 30 Ah @20 Hr Lead Acid Battery with Recessed M5 Terminals / Flame Retardant UL94-V0 Case

Available on backorder

Description

PowerSonic PG Series PG-12V28FR 12 Volt / 30 Ah @20 Hr Lead Acid Battery with Recessed M5 Terminals / Flame Retardant UL94-V0 Case

Weight	18.458 lbs
Manufacturer	PowerSonic
price-discounts	Each (1 pieces), Box/Case (2 pieces), Pallet Layer (40 pieces), Pallet (120 pieces)
Product Line
Product Series	PG Series
Model	PG-12V28
Terminal	Recessed M5
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code	813340010765
Manufacturers Model #	PG-12V28FR
Manufacturers SKU
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	30 Ah @20 Hr
Capacity @20 Hr	30
Capacity @10 Hr	28
Capacity @1 Hr	18.6
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	VRLA-AGM
Design Life	12 Years
Service Life	Up to 12 Years
Shelf Life	6
Internal Resistance	8.0 mOhm
Maximum Current	168
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 VDC
Cycle Charge Voltage	14.1 to 14.7 VDC
Maximum Charge Current	0.25C
Operating Temp Low (°F)	-4
Operating Temp High (°F)	140
Storage Temp Low (°F)	5
Storage Temp High (°F)	122
Operating Temp Low (°C)	-20
Operating Temp High (°C)	60
Storage Temp Low (°C)	-15
Storage Temp High (°C)	50
Length (In)	6.57
Width (In)	6.97
Height - Case (In)	4.92
Height - Overall (In)	4.92
Length (mm)	167
Width (mm)	177
Height - Case (mm)	125
Height - Overall (mm)	125
Weight (lb)	18.458
Weight (kg)	8.39
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
