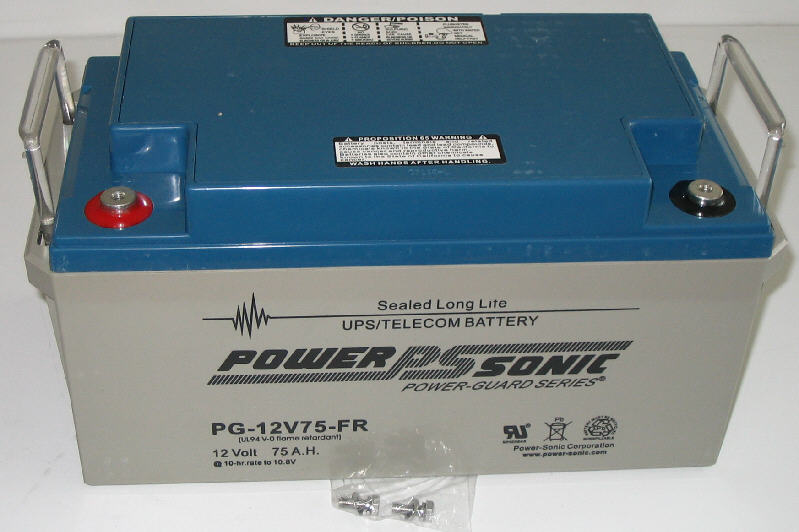

PowerSonic PG-12V75FR Lead Acid Battery
As low as $184.50 each
PowerSonic PG Series PG-12V75FR 12 Volt / 80 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / Flame Retardant UL94-V0 Case
Loading...
Description
PowerSonic PG Series PG-12V75FR 12 Volt / 80 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals / Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-PG-12V75RFR |
| Dimensions | 13.70″ (L) x 6.57″ (W) x 7.01″ (H) |
| Dimensions (mm) | 348 mm (L) x 167 mm (W) x 178 mm (H) |
| Weight | 53.878 lbs (24.49 kgs) |
Additional information
| Weight | 53.9 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces), Box/Case (1 pieces), Pallet Layer (18 pieces), Pallet (36 pieces) |
| Product Line | |
| Product Series | PG Series |
| Model | PG-12V75 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | 813340010819 |
| Manufacturers Model # | PG-12V75FR |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 80 Ah @20 Hr |
| Capacity @20 Hr | 80 |
| Capacity @10 Hr | 75 |
| Capacity @1 Hr | 45.0 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 12 Years |
| Service Life | Up to 12 Years |
| Shelf Life | 6 |
| Internal Resistance | 6.5 mOhm |
| Maximum Current | 450 |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 13.70 |
| Width (In) | 6.57 |
| Height - Case (In) | 7.01 |
| Height - Overall (In) | 6.73 |
| Length (mm) | 348 |
| Width (mm) | 167 |
| Height - Case (mm) | 178 |
| Height - Overall (mm) | 171 |
| Weight (lb) | 53.878 |
| Weight (kg) | 24.49 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
