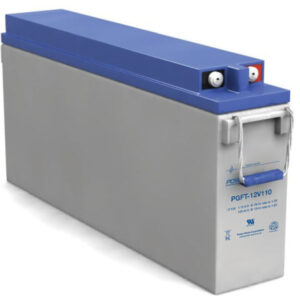

PowerSonic PGFT-12V110 Lead Acid Battery
PowerSonic PG FT Series PGFT-12V110 12 Volt / 100 Ah @10 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case
Loading...
Description
PowerSonic PG FT Series PGFT-12V110 12 Volt / 100 Ah @10 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-PGFT-12V110R |
| Dimensions | 21.46″ (L) x 4.33″ (W) x 9.17″ (H) |
| Dimensions (mm) | 545 mm (L) x 110 mm (W) x 233 mm (H) |
| Weight | 78.342 lbs (35.61 kgs) |
Additional information
| Manufacturer | PowerSonic |
|---|---|
| price-discounts | |
| Product Line | |
| Product Series | PG FT Series |
| Model | PGFT-12V110 |
| Terminal | Recessed M8 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | 813340011182 |
| Manufacturers Model # | PGFT-12V110 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 100 Ah @10 Hr |
| Capacity @20 Hr | 106.8 |
| Capacity @10 Hr | 100 |
| Capacity @1 Hr | 65.3 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 12 Years |
| Service Life | Up to 6 Years |
| Shelf Life | 6 |
| Internal Resistance | 4.3 mOhm |
| Maximum Current | 1068 |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 21.46 |
| Width (In) | 4.33 |
| Height - Case (In) | 9.17 |
| Height - Overall (In) | 9.17 |
| Length (mm) | 545 |
| Width (mm) | 110 |
| Height - Case (mm) | 233 |
| Height - Overall (mm) | 233 |
| Weight (lb) | 78.342 |
| Weight (kg) | 35.61 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
