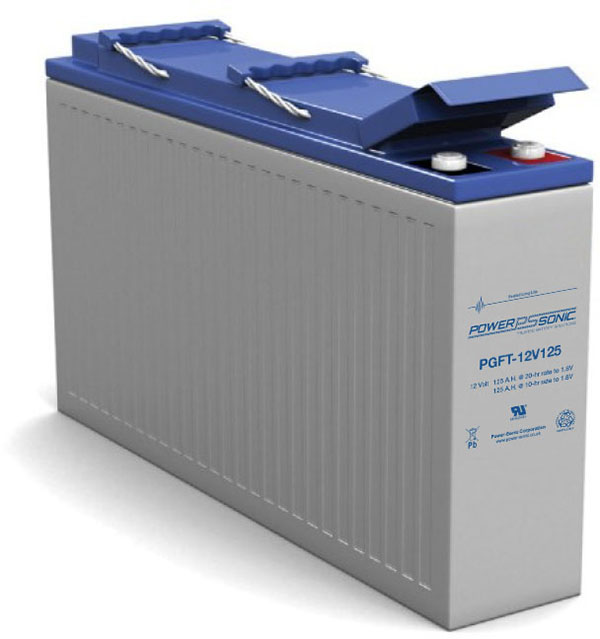

PowerSonic PGFT-12V125 Lead Acid Battery

As low as $296.34 each

PowerSonic PG FT Series PGFT-12V125 12 Volt / 129.8 Ah @10 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PG FT Series PGFT-12V125 12 Volt / 129.8 Ah @10 Hr Lead Acid Battery with Recessed M8 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-PGFT-12V125R
Dimensions 21.69″ (L) x 4.33″ (W) x 11.30″ (H)
Dimensions (mm) 551 mm (L) x 110 mm (W) x 287 mm (H)
Weight 89.122 lbs (40.51 kgs)

Additional information

Weight 89.122 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (1 pieces), Pallet Layer (8 pieces), Pallet (16 pieces)

Product Line
Product Series

PG FT Series

Model

PGFT-12V125

Terminal

Recessed M8

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

PGFT-12V125

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

129.8 Ah @10 Hr

Capacity @20 Hr

137.6

Capacity @10 Hr

129.8

Capacity @1 Hr

86.5

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

12 Years

Service Life

Up to 6 Years

Shelf Life

6

Internal Resistance

3.2 mOhm

Maximum Current

1370

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

21.69

Width (In)

4.33

Height - Case (In)

11.30

Height - Overall (In)

11.30

Length (mm)

551

Width (mm)

110

Height - Case (mm)

287

Height - Overall (mm)

287

Weight (lb)

89.122

Weight (kg)

40.51

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
