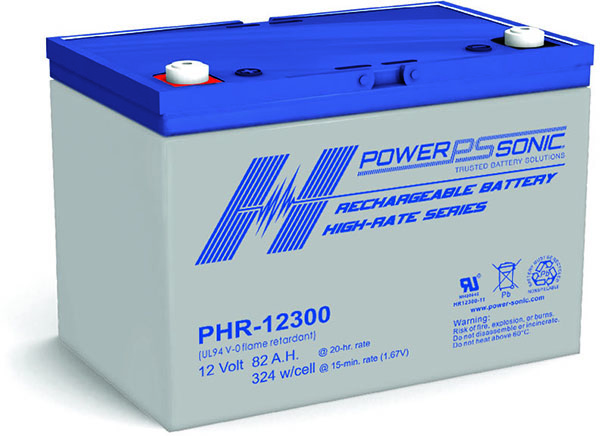

PowerSonic PHR-12300 Lead Acid Battery
$373.50
PowerSonic PHR Series PHR-12300 12 Volt / 324 W @15 Min Lead Acid Battery with Recessed M6 Terminals / Flame Retardant UL94-V0 Case
Out of stock
Loading...
Description
PowerSonic PHR Series PHR-12300 12 Volt / 324 W @15 Min Lead Acid Battery with Recessed M6 Terminals / Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-PHR-12300RFR |
| Dimensions | 10.20″ (L) x 6.61″ (W) x 8.19″ (H) |
| Dimensions (mm) | 259 mm (L) x 168 mm (W) x 208 mm (H) |
| Weight | 52.382 lbs (23.81 kgs) |
Additional information
| Weight | 52.382 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Pallet Layer (16 pieces), Pallet (32 pieces) |
| Product Line | |
| Product Series | PHR Series |
| Model | PHR-12300 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | 813340013544 |
| Manufacturers Model # | PHR-12300 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 324 W @15 Min |
| Capacity @20 Hr | 82.6 |
| Capacity @10 Hr | 80 |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | |
| Service Life | Up to 10 Years |
| Shelf Life | 6 |
| Internal Resistance | 4.5 mOhm |
| Maximum Current | 1230 |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 10.20 |
| Width (In) | 6.61 |
| Height - Case (In) | 8.19 |
| Height - Overall (In) | 8.19 |
| Length (mm) | 259 |
| Width (mm) | 168 |
| Height - Case (mm) | 208 |
| Height - Overall (mm) | 208 |
| Weight (lb) | 52.382 |
| Weight (kg) | 23.81 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
