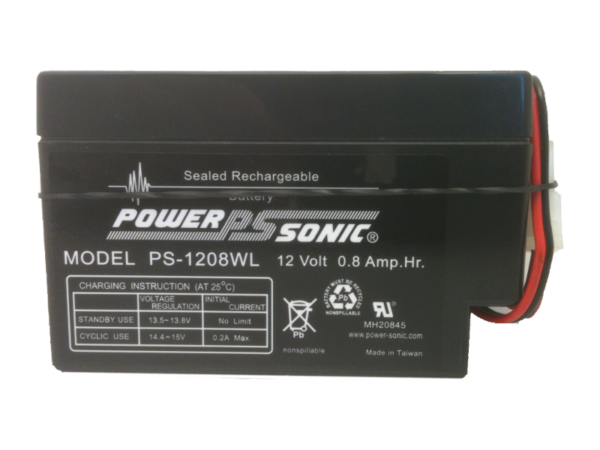

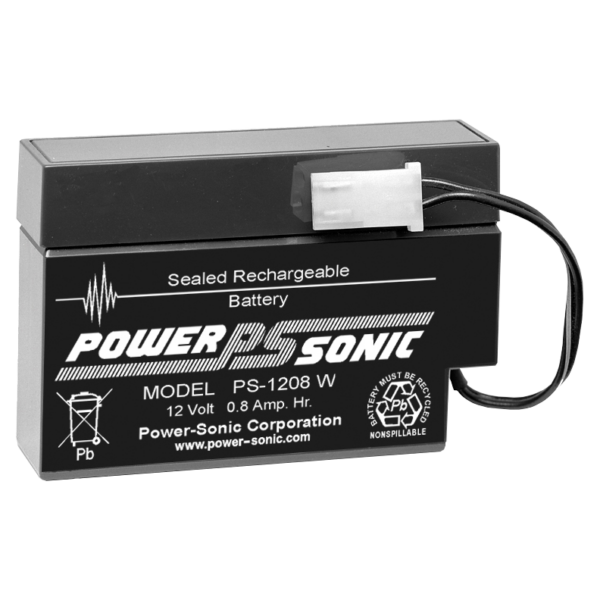

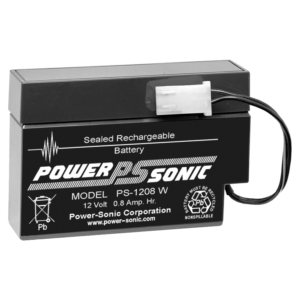

PowerSonic PS-1208WL Lead Acid Battery

As low as $13.14 each

PowerSonic PS Series PS-1208WL 12 Volt / 0.8 Ah @20 Hr Lead Acid Battery with Tyco. 1-480318-0 Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-1208WL 12 Volt / 0.8 Ah @20 Hr Lead Acid Battery with Tyco. 1-480318-0 Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-1208WT
Dimensions 3.78″ (L) x 0.98″ (W) x 2.44″ (H)
Dimensions (mm) 96 mm (L) x 25 mm (W) x 62 mm (H)
Weight 0.77 lbs (0.35 kgs)

Product Notes

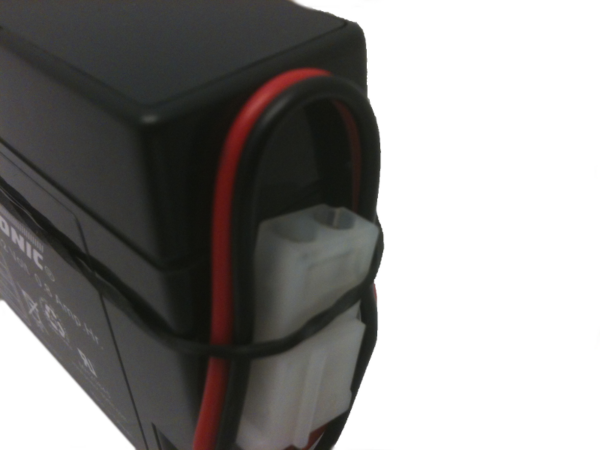

Leads terminated with free hanging AMP. INC MATE-N-LOK connector, Socket housing 1-480318-0 mates with pin housing 1-480319-0. Lead length: 6.50” (168mm)

Additional information

Weight 0.8 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (20 pieces), Pallet Layer (900 pieces), Pallet (3,600 pieces)

Product Line
Product Series

PS Series

Model

PS-1208

Terminal

Tyco. 1-480318-0

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010291

Manufacturers Model #

PS-1208WL

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

0.8 Ah @20 Hr

Capacity @20 Hr

0.8

Capacity @10 Hr

0.72

Capacity @1 Hr

0.48

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

150.0 mOhm

Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

3.78

Width (In)

0.98

Height - Case (In)

2.44

Height - Overall (In)

2.44

Length (mm)

96

Width (mm)

25

Height - Case (mm)

62

Height - Overall (mm)

62

Weight (lb)

0.77

Weight (kg)

0.35

BCI Group
Manufacturers Warranty

12 Month

Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
