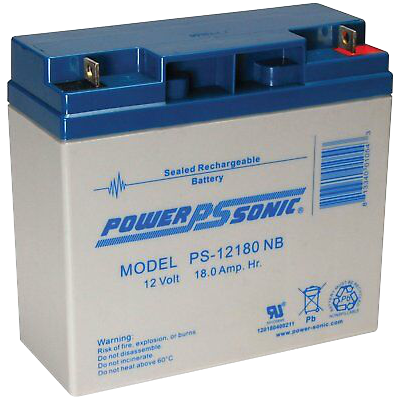

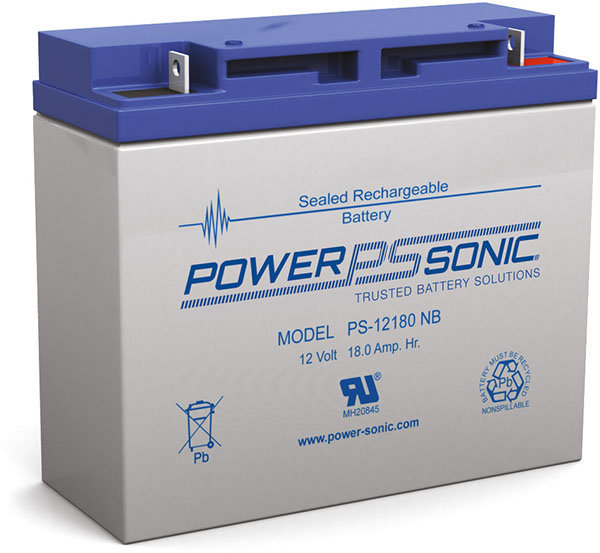

PowerSonic PS-12180NB Lead Acid Battery

As low as $34.20 each

PowerSonic PS Series PS-12180NB 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-12180NB 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-12180NB
Dimensions 7.13″ (L) x 2.99″ (W) x 6.57″ (H)
Dimensions (mm) 181 mm (L) x 76 mm (W) x 167 mm (H)
Weight 12.584 lbs (5.72 kgs)

Product Notes

DISCONTINUED

Additional information

Weight 12.6 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (2 pieces), Pallet Layer (50 pieces), Pallet (150 pieces)

Product Line
Product Series

PS Series

Model

PS-12180

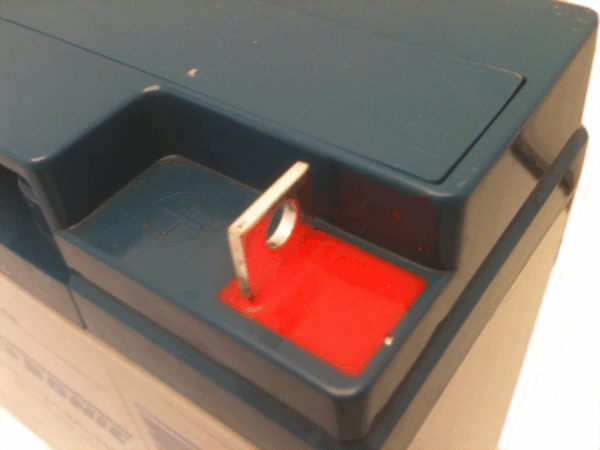

Terminal

Nut & Bolt (M5)

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010543

Manufacturers Model #

PS-12180NB

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

18 Ah @20 Hr

Capacity @20 Hr

18.0

Capacity @10 Hr

17.1

Capacity @1 Hr

11.50

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

10.5 mOhm

Maximum Current

270

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

7.13

Width (In)

2.99

Height - Case (In)

6.57

Height - Overall (In)

6.57

Length (mm)

181

Width (mm)

76

Height - Case (mm)

167

Height - Overall (mm)

167

Weight (lb)

12.584

Weight (kg)

5.72

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
