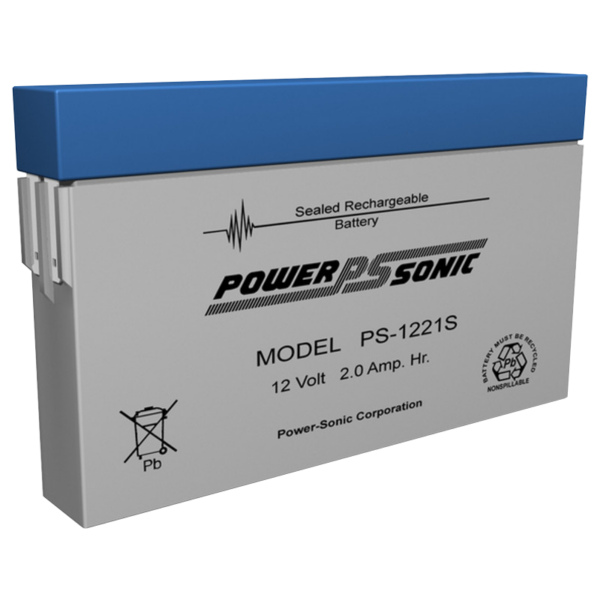

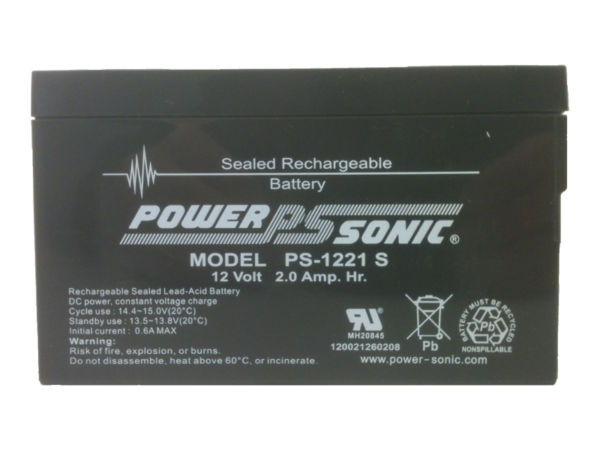

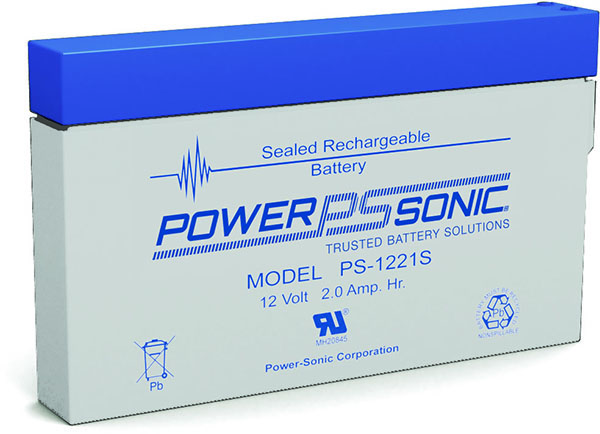

PowerSonic PS-1221S Lead Acid Battery

As low as $19.80 each

PowerSonic PS Series PS-1221S 12 Volt / 2.0 Ah @20 Hr Lead Acid Battery with Pressure Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-1221S 12 Volt / 2.0 Ah @20 Hr Lead Acid Battery with Pressure Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-1221SPC
Dimensions 5.91″ (L) x 0.79″ (W) x 3.50″ (H)
Dimensions (mm) 150 mm (L) x 20 mm (W) x 89 mm (H)
Weight 1.496 lbs (0.68 kgs)

Additional information

Weight 1.5 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (20 pieces), Pallet Layer (300 pieces), Pallet (1,200 pieces)

Product Line
Product Series

PS Series

Model

PS-1221S

Terminal

Pressure

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010321

Manufacturers Model #

PS-1221S

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

2.0 Ah @20 Hr

Capacity @20 Hr

2.0

Capacity @10 Hr

1.9

Capacity @1 Hr

1.24

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

80 mOhm

Maximum Current

20.0

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

5.91

Width (In)

0.79

Height - Case (In)

3.50

Height - Overall (In)

3.50

Length (mm)

150

Width (mm)

20

Height - Case (mm)

89

Height - Overall (mm)

89

Weight (lb)

1.496

Weight (kg)

0.68

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
