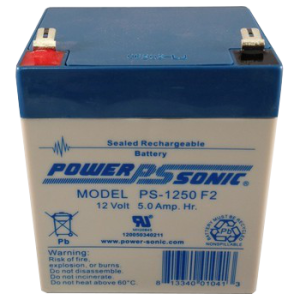

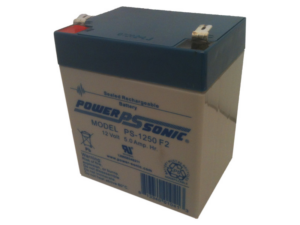

Qty 2 PowerSonic PS-1250F2 Lead Acid Battery
$26.00
(Qty 2) PowerSonic PS Series PS-1250F2 12 Volt / 5.0 Ah @20Hr Lead Acid Battery with F2 (0.250″) Terminals / ABS Plastic Case
270 in stock
Loading...
Description
(Qty 2) PowerSonic PS Series PS-1250F2 12 Volt / 5.0 Ah @20Hr Lead Acid Battery with F2 (0.250″) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-Q02V12A005 |
| Dimensions | 3.54″ (L) x 2.76″ (W) x 3.98″ (H) |
| Dimensions (mm) | 90 mm (L) x 70 mm (W) x 101 mm (H) |
| Weight | 7 lbs (1.59 kgs) |
Additional information
| Weight | 7 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | |
| Product Line | |
| Product Series | PS Series |
| Model | PS-1250 |
| Terminal | F1 (0.187\\\\\\\\\\\\\\\") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | 813340010406 |
| Manufacturers Model # | PS-1250F1 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 5.0 Ah @20Hr |
| Capacity @20 Hr | 5.0 |
| Capacity @10 Hr | 4.5 |
| Capacity @1 Hr | 2.85 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Sealed Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 5 Years |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | 40 mOhm |
| Maximum Current | 50.0 |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 3.54 |
| Width (In) | 2.76 |
| Height - Case (In) | 3.98 |
| Height - Overall (In) | 4.21 |
| Length (mm) | 90 |
| Width (mm) | 70 |
| Height - Case (mm) | 101 |
| Height - Overall (mm) | 107 |
| Weight (lb) | 7 |
| Weight (kg) | 1.59 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
