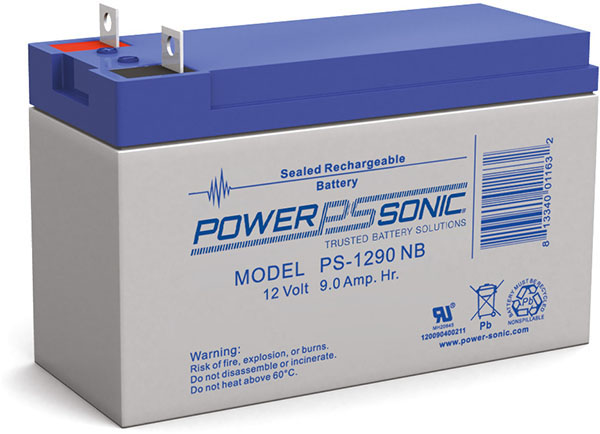

PowerSonic PS-1290NB Lead Acid Battery
As low as $15.90 each
PowerSonic PS Series PS-1290NB 12 Volt / 9.0 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals / ABS Plastic Case
Loading...
Description
PowerSonic PS Series PS-1290NB 12 Volt / 9.0 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-1290NB |
| Dimensions | 5.94″ (L) x 2.56″ (W) x 3.70″ (H) |
| Dimensions (mm) | 151 mm (L) x 65 mm (W) x 94 mm (H) |
| Weight | 5.984 lbs (2.72 kgs) |
Additional information
| Weight | 5.984 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces), Box/Case (5 pieces), Pallet Layer (100 pieces), Pallet (300 pieces) |
| Product Line | |
| Product Series | PS Series |
| Model | PS-1290 |
| Terminal | Nut & Bolt (M5) |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | 813340011632 |
| Manufacturers Model # | PS-1290NB |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 9.0 Ah @20 Hr |
| Capacity @20 Hr | 9.0 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 5 Years |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 5.94 |
| Width (In) | 2.56 |
| Height - Case (In) | 3.70 |
| Height - Overall (In) | 3.86 |
| Length (mm) | 151 |
| Width (mm) | 65 |
| Height - Case (mm) | 94 |
| Height - Overall (mm) | 98 |
| Weight (lb) | 5.984 |
| Weight (kg) | 2.72 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
