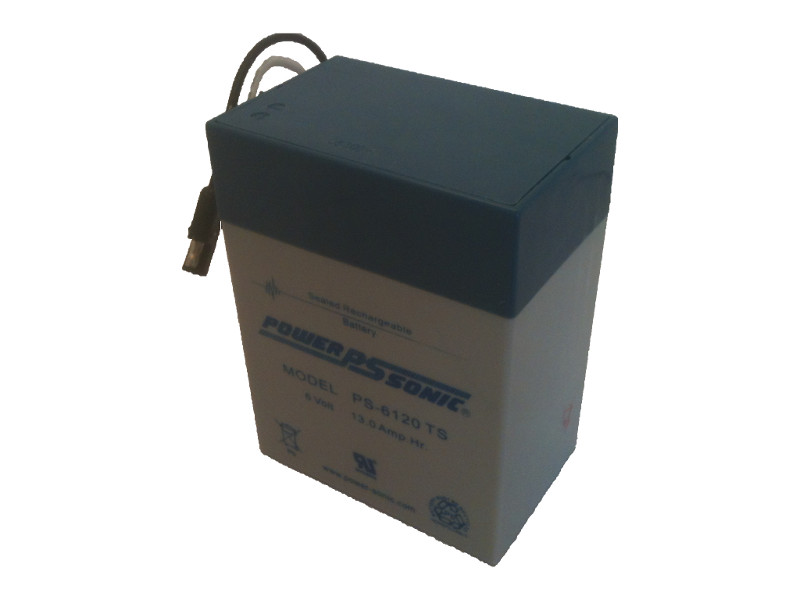

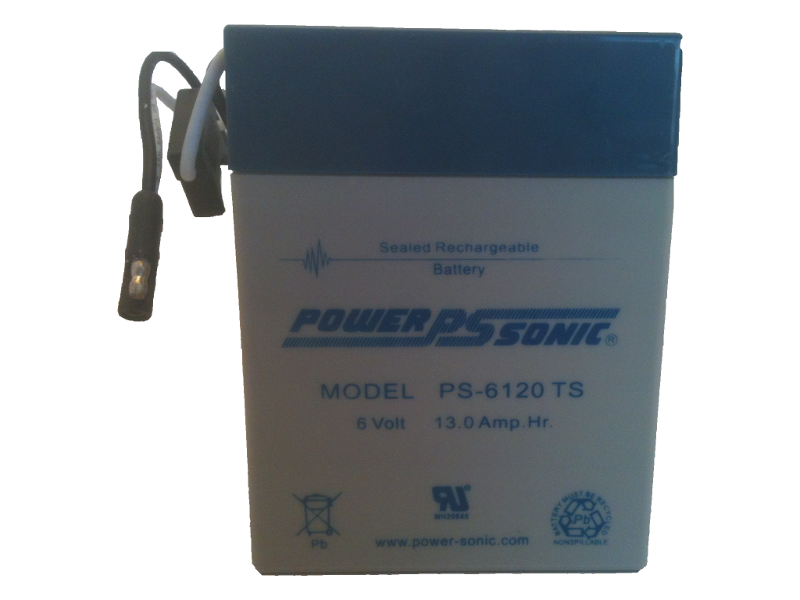

PowerSonic PS-6120TS Lead Acid Battery
PowerSonic PS Series PS-6120TS 6 Volt / 11 Ah @20 Hr Lead Acid Battery with Plug (Toy S) Terminals / ABS Plastic Case
Loading...
Description
PowerSonic PS Series PS-6120TS 6 Volt / 11 Ah @20 Hr Lead Acid Battery with Plug (Toy S) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-6120CS |
| Dimensions | 5.94″ (L) x 1.97″ (W) x 3.70″ (H) |
| Dimensions (mm) | 151 mm (L) x 50 mm (W) x 94 mm (H) |
| Weight | 4.29 lbs (1.95 kgs) |
Product Notes
“S” to indicate long life version
Additional information
| Weight | 4.8 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | |
| Product Line | |
| Product Series | PS Series |
| Model | PS-6120 |

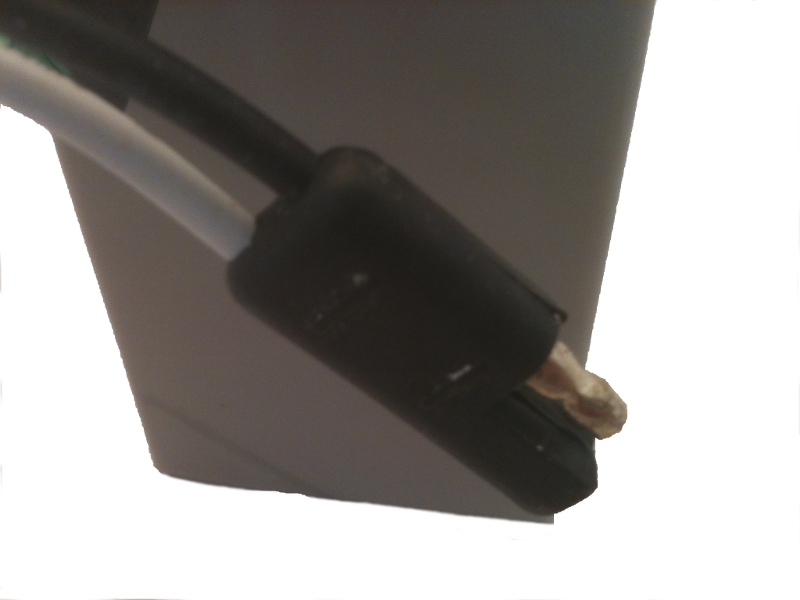

| Terminal | Plug (Toy S) |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | PS-6120TS |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 6 |
| Capacity (Nominal) | 11 Ah @20 Hr |
| Capacity @20 Hr | 11 |
| Capacity @10 Hr | 10.9 |
| Capacity @1 Hr | 7.89 |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 10 Years |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | 15 mOhm |
| Maximum Current | 165 |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 5.94 |
| Width (In) | 1.97 |
| Height - Case (In) | 3.70 |
| Height - Overall (In) | 3.94 |
| Length (mm) | 151 |
| Width (mm) | 50 |
| Height - Case (mm) | 94 |
| Height - Overall (mm) | 100 |
| Weight (lb) | 4.29 |
| Weight (kg) | 1.95 |
| BCI Group | |
| Manufacturers Warranty | 12 Month |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
