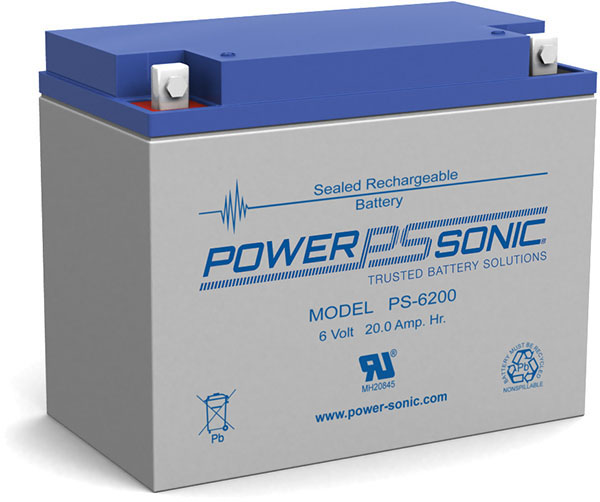

PowerSonic PS-6200NB Lead Acid Battery

As low as $33.11 each

PowerSonic PS Series PS-6200NB 6 Volt / 20 Ah @20 Hr Lead Acid Battery with Nut & Bolt Terminals / ABS Plastic Case

Loading...

Description

PowerSonic PS Series PS-6200NB 6 Volt / 20 Ah @20 Hr Lead Acid Battery with Nut & Bolt Terminals / ABS Plastic Case

Specifications
Battery Store SKU PS-6200NB
Dimensions 6.18″ (L) x 3.27″ (W) x 4.92″ (H)
Dimensions (mm) 157 mm (L) x 83 mm (W) x 125 mm (H)
Weight 7.084 lbs (3.22 kgs)

Additional information

Weight 7.084 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (4 pieces), Pallet Layer (60 pieces), Pallet (240 pieces)

Product Line
Product Series

PS Series

Model

PS-6200

Terminal

Nut & Bolt

Terminal Layout
Case Material

ABS Plastic

UPC Code

813340010239

Manufacturers Model #

PS-6200NB

Manufacturers SKU
Deprecated Model #
Applications
Voltage

6

Capacity (Nominal)

20 Ah @20 Hr

Capacity @20 Hr

20

Capacity @10 Hr

18.6

Capacity @1 Hr

12.4

Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

7.0 mOhm

Maximum Current

200

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

6.18

Width (In)

3.27

Height - Case (In)

4.92

Height - Overall (In)

4.92

Length (mm)

157

Width (mm)

83

Height - Case (mm)

125

Height - Overall (mm)

125

Weight (lb)

7.084

Weight (kg)

3.22

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
