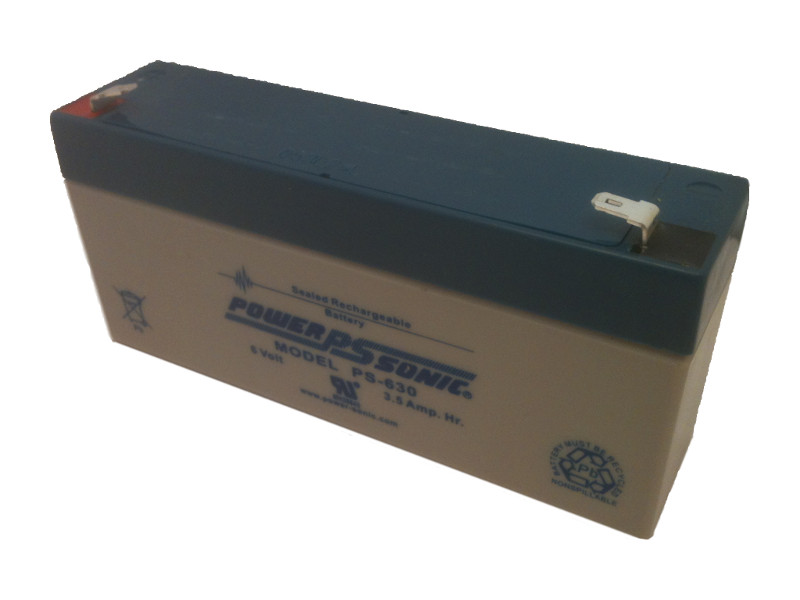

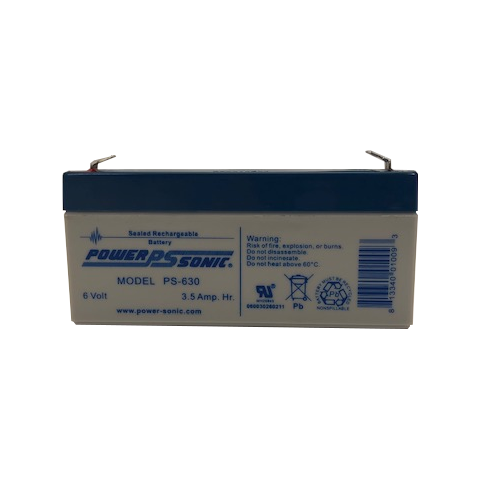

PowerSonic PS-630 Lead Acid Battery

As low as $5.40 each

PowerSonic PS Series PS-630 6 Volt / 3.5 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case

price-discounts

Each (1 pieces) - $7.65 each

Box/Case (20 pieces) - $6.75 each

Pallet Layer (320 pieces) - $5.63 each

Pallet (1,280 pieces) - $5.40 each

Description

PowerSonic PS Series PS-630 6 Volt / 3.5 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case

Weight	1.408 lbs
Manufacturer	PowerSonic
price-discounts	Each (1 pieces), Box/Case (20 pieces), Pallet Layer (320 pieces), Pallet (1,280 pieces)
Product Line
Product Series	PS Series
Model	PS-630
Terminal	F1 (0.187")
Terminal Layout
Case Material	ABS Plastic
UPC Code	813340010093
Manufacturers Model #	PS-630
Manufacturers SKU
Deprecated Model #
Applications
Voltage	6
Capacity (Nominal)	3.5 Ah @20 Hr
Capacity @20 Hr	3.5
Capacity @10 Hr	3.3
Capacity @1 Hr	2.17
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	VRLA-AGM
Design Life	5 Years
Service Life
Shelf Life	6
Internal Resistance	28 mOhm
Maximum Current	35
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 VDC
Cycle Charge Voltage	14.1 to 14.7 VDC
Maximum Charge Current	0.25C
Operating Temp Low (°F)	-4
Operating Temp High (°F)	140
Storage Temp Low (°F)	5
Storage Temp High (°F)	122
Operating Temp Low (°C)	-20
Operating Temp High (°C)	60
Storage Temp Low (°C)	-15
Storage Temp High (°C)	50
Length (In)	5.28
Width (In)	1.34
Height - Case (In)	2.36
Height - Overall (In)	2.36
Length (mm)	134
Width (mm)	34
Height - Case (mm)	60
Height - Overall (mm)	60
Weight (lb)	1.408
Weight (kg)	0.64
