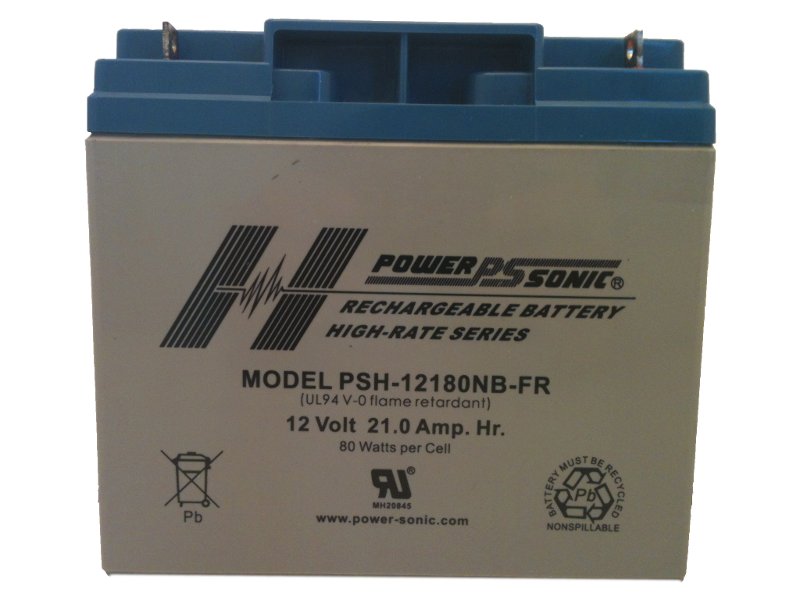

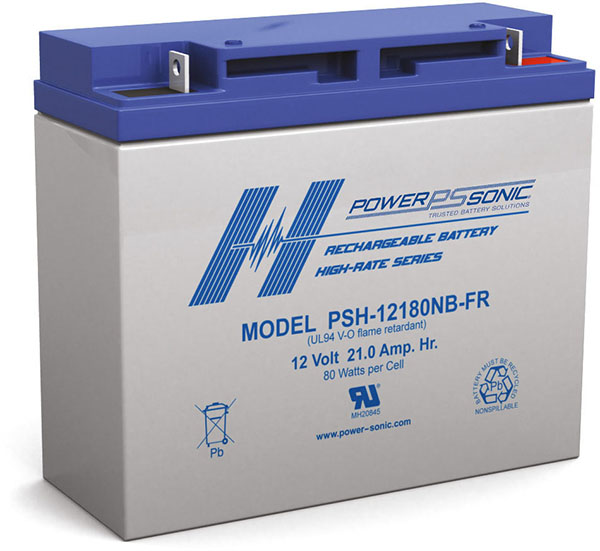

PowerSonic PSH-12180FR Lead Acid Battery
As low as $51.00 each
PowerSonic PSH Series PSH-12180FR 12 Volt / 80 W @15 Min Lead Acid Battery with Nut & Bolt (M5) Terminals / Flame Retardant UL94-V0 Case
Loading...
Description
PowerSonic PSH Series PSH-12180FR 12 Volt / 80 W @15 Min Lead Acid Battery with Nut & Bolt (M5) Terminals / Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-PSH-12180NBFR |
| Dimensions | 7.14″ (L) x 3.03″ (W) x 6.59″ (H) |
| Dimensions (mm) | 181 mm (L) x 77 mm (W) x 167 mm (H) |
| Weight | 13.178 lbs (5.99 kgs) |
Additional information
| Weight | 13.178 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces), Box/Case (2 pieces), Pallet Layer (50 pieces), Pallet (150 pieces) |
| Product Line | |
| Product Series | PSH Series |
| Model | PSH-12180 |

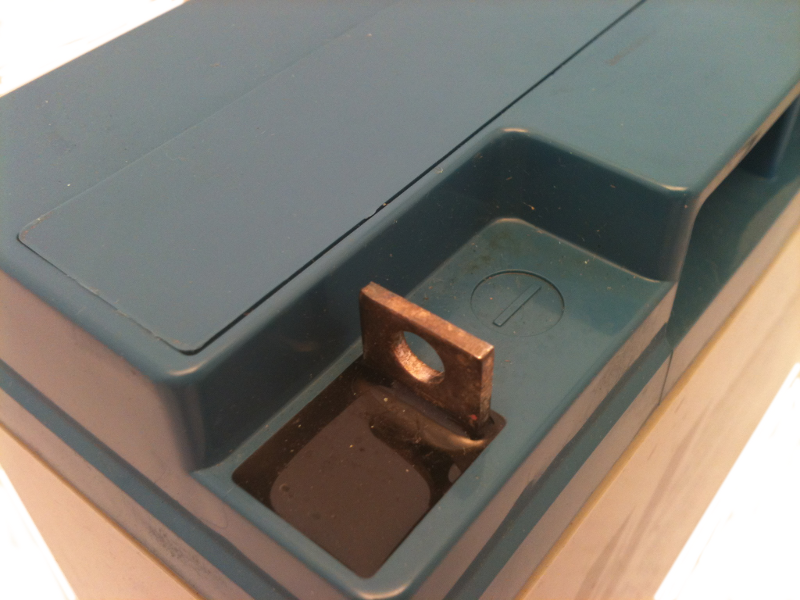

| Terminal | Nut & Bolt (M5) |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | 813340010703 |
| Manufacturers Model # | PSH-12180FR |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 80 W @15 Min |
| Capacity @20 Hr | 21.0 |
| Capacity @10 Hr | 20 |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 5 Years |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | 12.0 mOhm |
| Maximum Current | 210 |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 7.14 |
| Width (In) | 3.03 |
| Height - Case (In) | 6.59 |
| Height - Overall (In) | 6.59 |
| Length (mm) | 181 |
| Width (mm) | 77 |
| Height - Case (mm) | 167 |
| Height - Overall (mm) | 167 |
| Weight (lb) | 13.178 |
| Weight (kg) | 5.99 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
