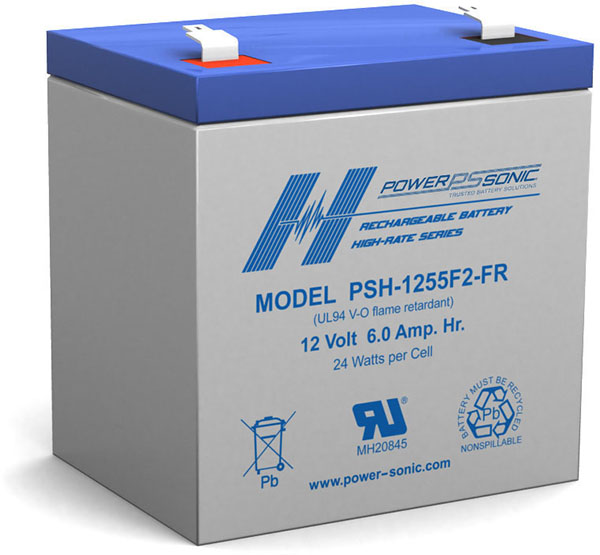

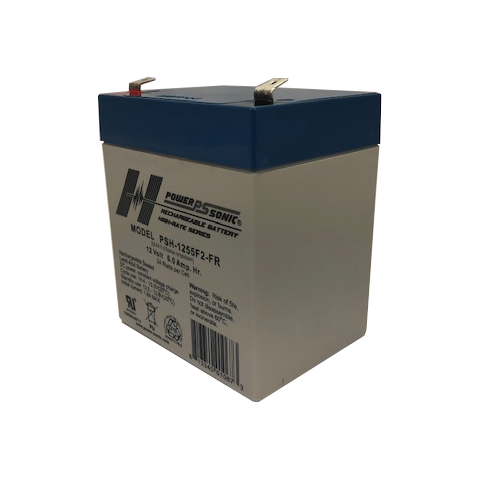

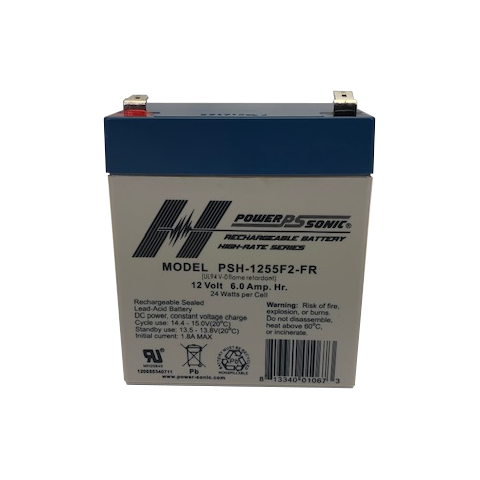

PowerSonic PSH-1255FR Lead Acid Battery

As low as $12.31 each

PowerSonic PSH Series PSH-1255FR 12 Volt / 24 W @15 Min Lead Acid Battery with F2 (0.250″) Terminals / Flame Retardant UL94-V0 Case

Loading...

Description

PowerSonic PSH Series PSH-1255FR 12 Volt / 24 W @15 Min Lead Acid Battery with F2 (0.250″) Terminals / Flame Retardant UL94-V0 Case

Specifications
Battery Store SKU PS-PSH-1255F2FR
Dimensions 3.54″ (L) x 2.76″ (W) x 3.98″ (H)
Dimensions (mm) 90 mm (L) x 70 mm (W) x 101 mm (H)
Weight 3.982 lbs (1.81 kgs)

Additional information

Weight 3.982 lbs
Manufacturer

PowerSonic

price-discounts

Each (1 pieces), Box/Case (10 pieces), Pallet Layer (100 pieces), Pallet (500 pieces)

Product Line
Product Series

PSH Series

Model

PSH-1255

Terminal

F2 (0.250")

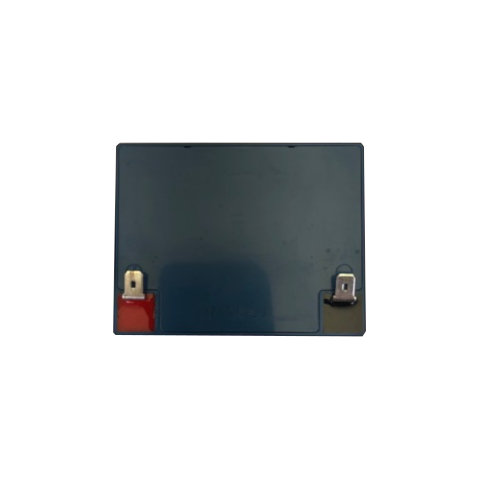

Terminal Layout
Case Material

Flame Retardant UL94-V0

UPC Code

813340010673

Manufacturers Model #

PSH-1255FR

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

24 W @15 Min

Capacity @20 Hr

6.0

Capacity @10 Hr

5.6

Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

VRLA-AGM

Design Life

5 Years

Service Life
Shelf Life

6

Internal Resistance

28.0 mOhm

Maximum Current

60.0

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.1 to 14.7 VDC

Maximum Charge Current

0.25C

Operating Temp Low (°F)

-4

Operating Temp High (°F)

140

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-20

Operating Temp High (°C)

60

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

3.54

Width (In)

2.76

Height - Case (In)

3.98

Height - Overall (In)

4.21

Length (mm)

90

Width (mm)

70

Height - Case (mm)

101

Height - Overall (mm)

107

Weight (lb)

3.982

Weight (kg)

1.81

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
