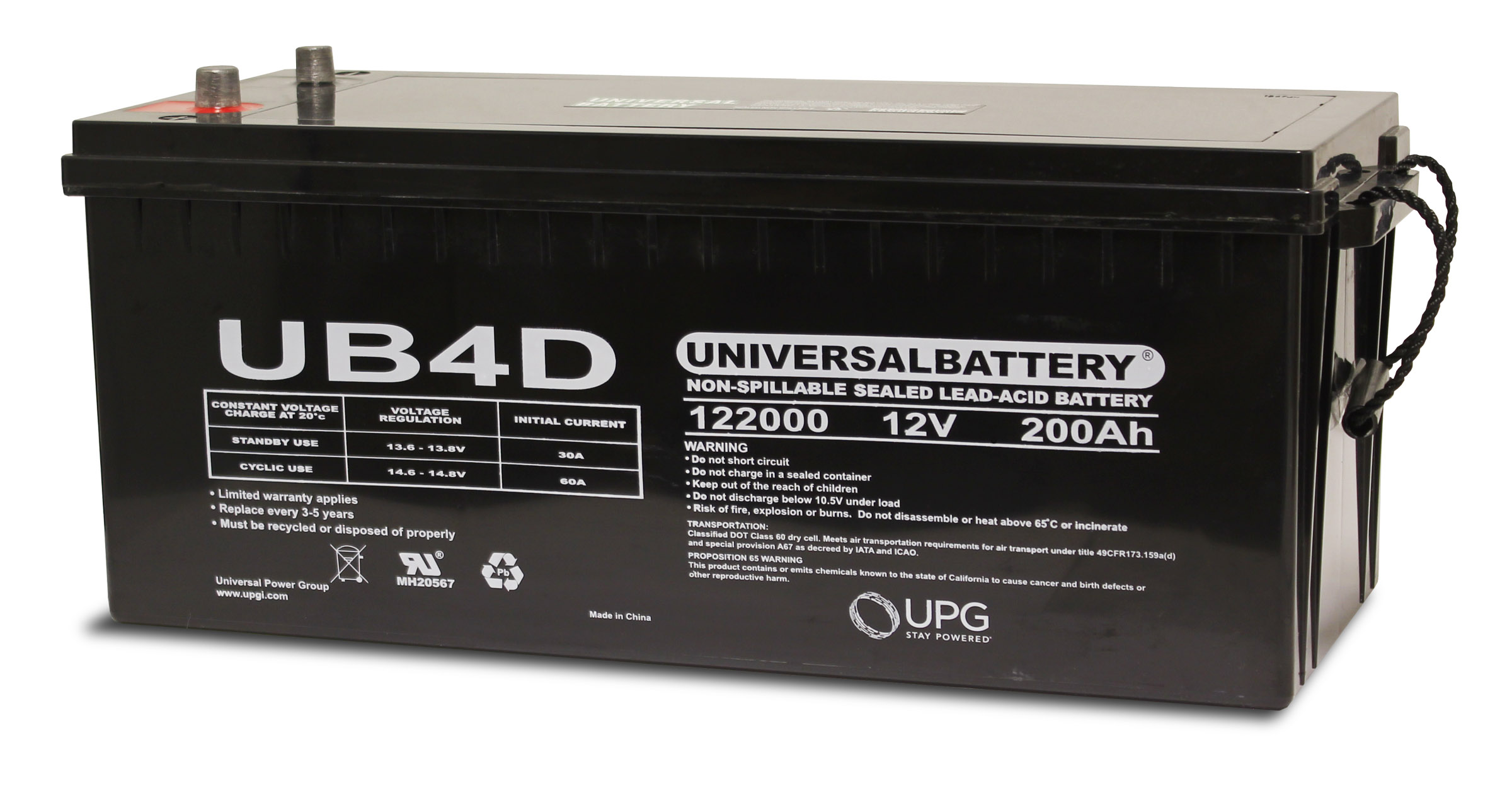

Universal Power UB-4D AGM (SAE) Lead Acid Battery

Universal Power UB-4D AGM (SAE) Lead Acid Battery

SKU: UB-4DSA Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-4D, Universal Power Tags: 45972, AGM-Lead Calcium, Lead Acid, UB Series, UB-4D, UB-4D AGM (SAE), Universal Power

$754.84

Universal Power UB-4D AGM (SAE) UB Series 12 Volt / 200 Ah @20 Hr Lead Acid Battery with SAE Post Terminals

The BSI Pricing Advantage

Out of stock

Add To Wishlist

Description

Universal Power UB-4D AGM (SAE) UB Series 12 Volt / 200 Ah @20 Hr Lead Acid Battery with SAE Post Terminals

Specifications
Battery Store SKU	UB-4DSA
Dimensions	20.9″ (L) x 8.15″ (W) x 9.65″ (H)
Dimensions (mm)	530.86 mm (L) x 207.01 mm (W) x 245.11 mm (H)
Weight	114.6 lbs (52.1 kgs)

Additional information

Weight	51.982218996643 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-4D
Terminal	SAE Post
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB-4D AGM (SAE)
Manufacturers SKU	45972
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	200 Ah @20 Hr
Capacity @20 Hr	200
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	20.9
Width (In)	8.15
Height - Case (In)	9.65
Height - Overall (In)	9.65
Length (mm)	530.86
Width (mm)	207.01
Height - Case (mm)	245.11
Height - Overall (mm)	245.11
Weight (lb)	114.6
Weight (kg)	52.1
BCI Group	Group 4D
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	1
Qty Per Pallet	24
