Universal Power UB121000 Lead Acid Battery

Universal Power UB121000 Lead Acid Battery

SKU: UB-121000NB Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-121000, Universal Power Tags: 45978, AGM-Lead Calcium, Lead Acid, UB Series, UB-121000, UB121000, Universal Power

$357.56

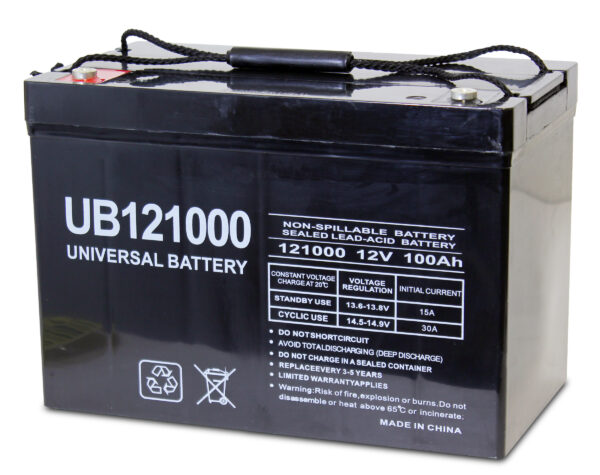

Universal Power UB121000 UB Series 12 Volt / 100 Ah @20 Hr Lead Acid Battery with Nut & Bolt Terminals

The BSI Pricing Advantage

Out of stock

Description

Universal Power UB121000 UB Series 12 Volt / 100 Ah @20 Hr Lead Acid Battery with Nut & Bolt Terminals

Specifications
Battery Store SKU	UB-121000NB
Dimensions	12.17″ (L) x 6.61″ (W) x 9.16″ (H)
Dimensions (mm)	309.11 mm (L) x 167.89 mm (W) x 232.66 mm (H)
Weight	63.93 lbs (29.1 kgs)

Additional information

Weight	28.998457770117 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-121000
Terminal	Nut & Bolt
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB121000
Manufacturers SKU	45978
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	100 Ah @20 Hr
Capacity @20 Hr	100
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	12.17
Width (In)	6.61
Height - Case (In)	9.16
Height - Overall (In)	9.16
Length (mm)	309.11
Width (mm)	167.89
Height - Case (mm)	232.66
Height - Overall (mm)	232.66
Weight (lb)	63.93
Weight (kg)	29.1
BCI Group	Group 27
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	1
Qty Per Pallet	52

Form, Fit and Function Equivalents

Please choose search option from the menu to start your search...

Loading Search Results ...

Universal Power UB121000 Lead Acid Battery

SKU: UB-121000R Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-121000, Universal Power Tags: 45973, AGM-Lead Calcium, Lead Acid, UB Series, UB-121000, UB121000, Universal Power

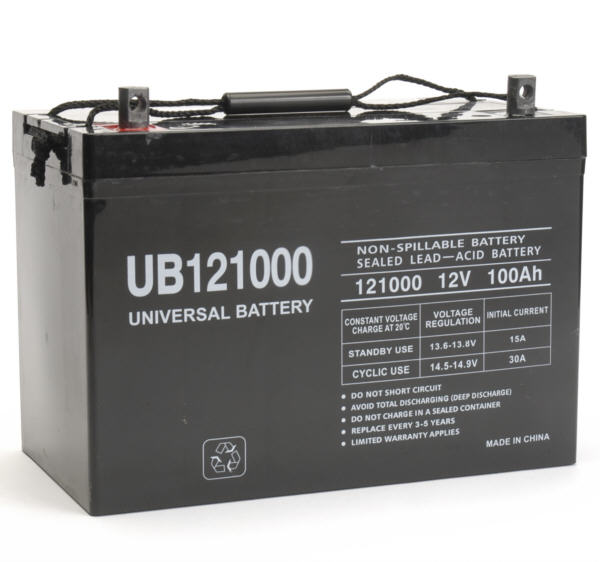

Universal Power UB121000 UB Series 12 Volt / 100 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals

The BSI Pricing Advantage

Out of stock

Description

Universal Power UB121000 UB Series 12 Volt / 100 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals

Specifications
Battery Store SKU	UB-121000R
Dimensions	12.17″ (L) x 6.61″ (W) x 8.35″ (H)
Dimensions (mm)	309.11 mm (L) x 167.89 mm (W) x 212.09 mm (H)
Weight	63.93 lbs (29.1 kgs)

Additional information

Weight	28.998457770117 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-121000
Terminal	Recessed M6
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB121000
Manufacturers SKU	45973
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	100 Ah @20 Hr
Capacity @20 Hr	100
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	12.17
Width (In)	6.61
Height - Case (In)	8.35
Height - Overall (In)	8.35
Length (mm)	309.11
Width (mm)	167.89
Height - Case (mm)	212.09
Height - Overall (mm)	212.09
Weight (lb)	63.93
Weight (kg)	29.1
BCI Group	Group 27
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	1
Qty Per Pallet	52
