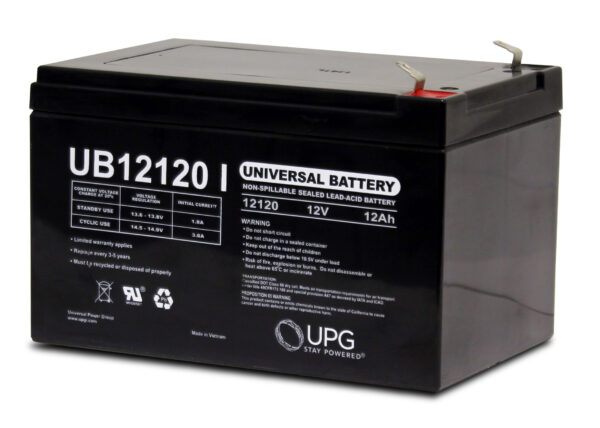

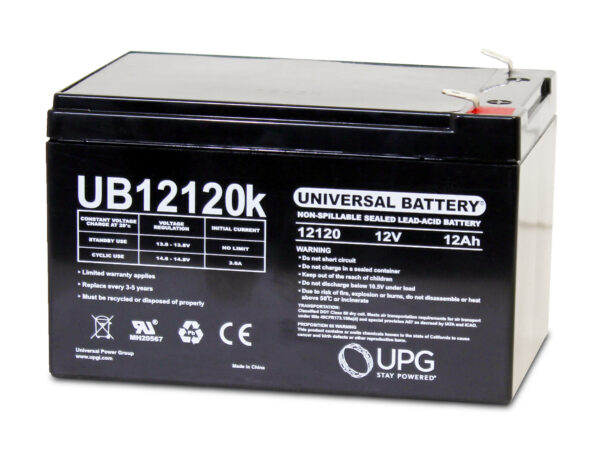

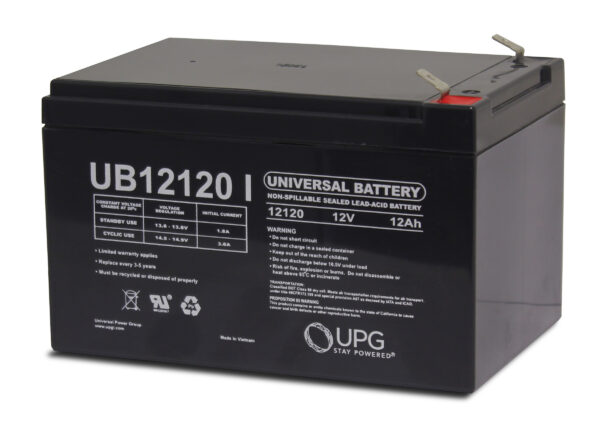

Universal Power UB12120 Lead Acid Battery

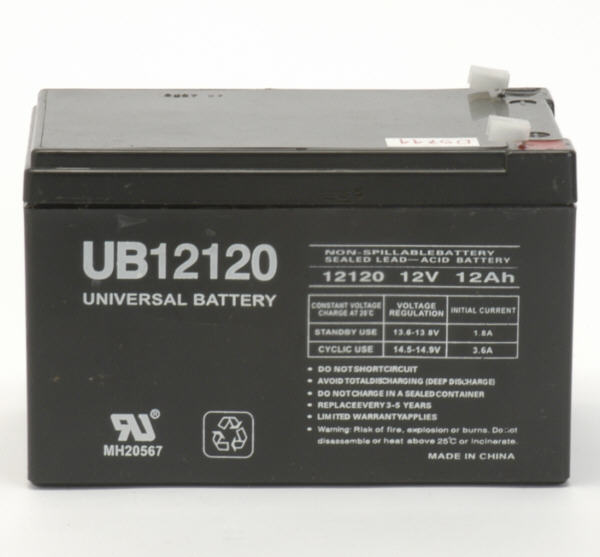

Universal Power UB12120 Lead Acid Battery - Image 2

Universal Power UB12120 Lead Acid Battery

SKU: UB-12120F1 Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-12120, Universal Power Tags: AGM-Lead Calcium, D5744, Lead Acid, UB Series, UB-12120, UB12120, Universal Power

$53.92

Universal Power UB12120 UB Series 12 Volt / 12 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

The BSI Pricing Advantage

Out of stock

Description

Universal Power UB12120 UB Series 12 Volt / 12 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals

Specifications
Battery Store SKU	UB-12120F1
Dimensions	5.94″ (L) x 3.89″ (W) x 4.06″ (H)
Dimensions (mm)	150.8 mm (L) x 98.8 mm (W) x 103.1 mm (H)
Weight	8.16 lbs (3.7 kgs)

Additional information

Weight	3.7013517191327 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-12120
Terminal	F1 (0.187")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB12120
Manufacturers SKU	D5744
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	12 Ah @20 Hr
Capacity @20 Hr	12
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	5.94
Width (In)	3.89
Height - Case (In)	4.06
Height - Overall (In)	4.06
Length (mm)	150.8
Width (mm)	98.8
Height - Case (mm)	103.1
Height - Overall (mm)	103.1
Weight (lb)	8.16
Weight (kg)	3.7
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	4
Qty Per Pallet	336

Similar Products from this Brand

Form, Fit and Function Equivalents

Please choose search option from the menu to start your search...

Loading Search Results ...

Universal Power UB12120 Lead Acid Battery

SKU: UB-12120F2 Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-12120, Universal Power Tags: AGM-Lead Calcium, D5775, Lead Acid, UB Series, UB-12120, UB12120, Universal Power

$53.92

Universal Power UB12120 UB Series 12 Volt / 12 Ah @20 Hr Lead Acid Battery with F2 (0.250″) Terminals

The BSI Pricing Advantage

Out of stock

Description

Universal Power UB12120 UB Series 12 Volt / 12 Ah @20 Hr Lead Acid Battery with F2 (0.250″) Terminals

Specifications
Battery Store SKU	UB-12120F2
Dimensions	5.94″ (L) x 3.89″ (W) x 4.06″ (H)
Dimensions (mm)	150.8 mm (L) x 98.8 mm (W) x 103.1 mm (H)
Weight	8.16 lbs (3.7 kgs)

Additional information

Weight	3.7013517191327 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-12120
Terminal	F2 (0.250")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB12120
Manufacturers SKU	D5775
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	12 Ah @20 Hr
Capacity @20 Hr	12
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	5.94
Width (In)	3.89
Height - Case (In)	4.06
Height - Overall (In)	4.06
Length (mm)	150.8
Width (mm)	98.8
Height - Case (mm)	103.1
Height - Overall (mm)	103.1
Weight (lb)	8.16
Weight (kg)	3.7
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	4
Qty Per Pallet	336

Similar Products from this Brand

Form, Fit and Function Equivalents

Please choose search option from the menu to start your search...

Loading Search Results ...

Universal Power UB12120 Lead Acid Battery

SKU: UB-12120NB Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, UB Series, UB-12120, Universal Power Tags: 40842, AGM-Lead Calcium, Lead Acid, UB Series, UB-12120, UB12120, Universal Power

$53.92

Universal Power UB12120 UB Series 12 Volt / 12 Ah @20 Hr Lead Acid Battery with Nut & Bolt Terminals

The BSI Pricing Advantage

Out of stock

Description

Universal Power UB12120 UB Series 12 Volt / 12 Ah @20 Hr Lead Acid Battery with Nut & Bolt Terminals

Specifications
Battery Store SKU	UB-12120NB
Dimensions	5.94″ (L) x 3.89″ (W) x 4.19″ (H)
Dimensions (mm)	150.8 mm (L) x 98.8 mm (W) x 106.4 mm (H)
Weight	8.16 lbs (3.7 kgs)

Additional information

Weight	3.7013517191327 lbs
Manufacturer	Universal Power
Product Line
Product Series	UB Series
Model	UB-12120
Terminal	Nut & Bolt
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	UB12120
Manufacturers SKU	40842
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	12 Ah @20 Hr
Capacity @20 Hr	12
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3 to 5 Years
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge	350
Standby Charge Voltage	13.6 – 13.8 Volts
Cycle Charge Voltage	14.6 – 14.8 Volts
Maximum Charge Current	C/3
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	5.94
Width (In)	3.89
Height - Case (In)	4.19
Height - Overall (In)	4.19
Length (mm)	150.8
Width (mm)	98.8
Height - Case (mm)	106.4
Height - Overall (mm)	106.4
Weight (lb)	8.16
Weight (kg)	3.7
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box	4
Qty Per Pallet	336

Similar Products from this Brand

Form, Fit and Function Equivalents

Please choose search option from the menu to start your search...

Loading Search Results ...
