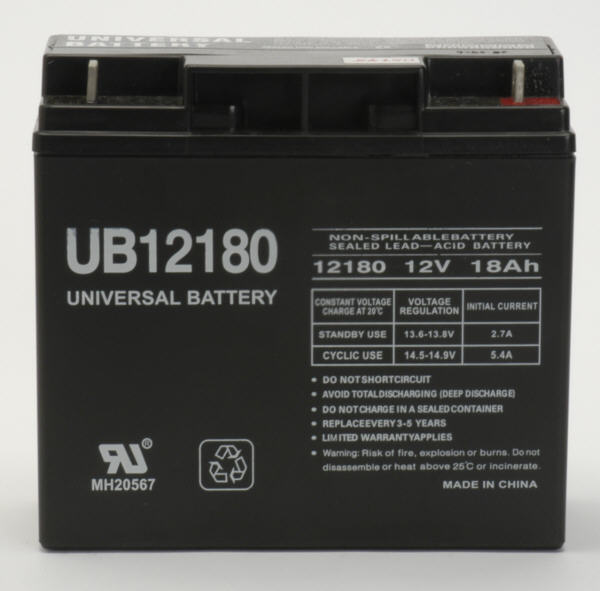

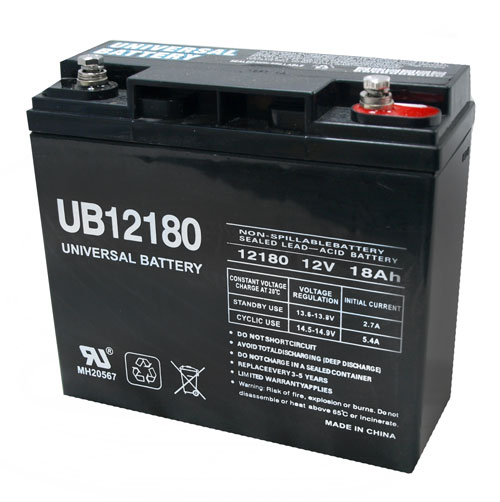

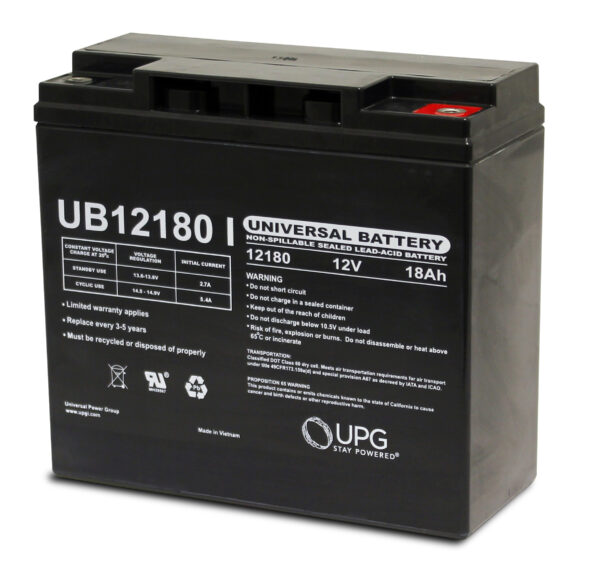

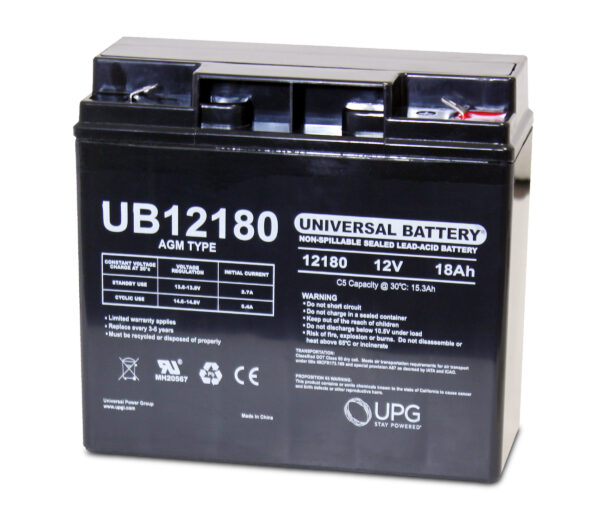

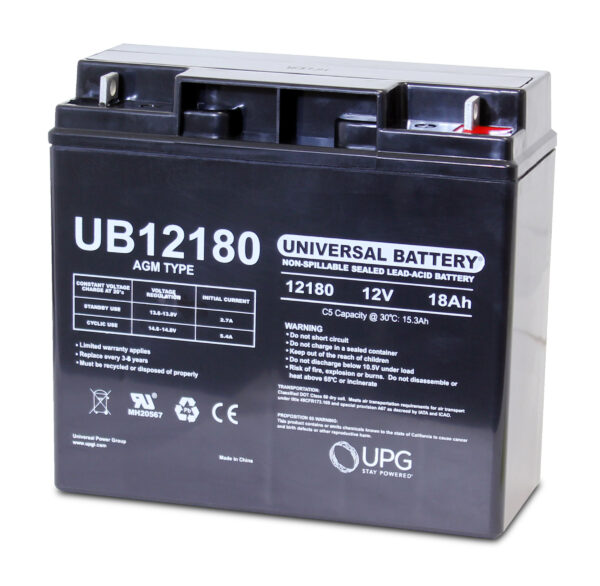

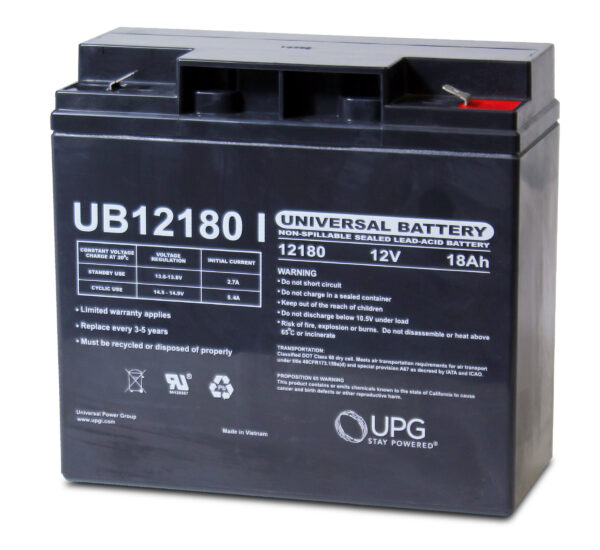

Universal Power UB12180 Lead Acid Battery
$89.30
Universal Power UB12180 UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals
Out of stock
Description
Universal Power UB12180 UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-12180NB |
| Dimensions | 7.15″ (L) x 3.06″ (W) x 6.6″ (H) |
| Dimensions (mm) | 181.6 mm (L) x 77.72 mm (W) x 167.6 mm (H) |
| Weight | 11.4 lbs (5.2 kgs) |
Additional information
| Weight | 5.1710060782001 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-12180 |
| Terminal | Nut & Bolt (M5) |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB12180 |
| Manufacturers SKU | D5745 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 18 Ah @20 Hr |
| Capacity @20 Hr | 18 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 7.15 |
| Width (In) | 3.06 |
| Height - Case (In) | 6.6 |
| Height - Overall (In) | 6.6 |
| Length (mm) | 181.6 |
| Width (mm) | 77.72 |
| Height - Case (mm) | 167.6 |
| Height - Overall (mm) | 167.6 |
| Weight (lb) | 11.4 |
| Weight (kg) | 5.2 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 4 |
| Qty Per Pallet | 240 |
Similar Products from this Brand
Form, Fit and Function Equivalents
Please choose search option from the menu to start your search...
Universal Power UB12180 Lead Acid Battery
$89.30
Universal Power UB12180 UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with F2 (0.250″) Terminals
Out of stock
Description
Universal Power UB12180 UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-12180F2 |
| Dimensions | 7.13″ (L) x 3.06″ (W) x 6.6″ (H) |
| Dimensions (mm) | 181.6 mm (L) x 77.72 mm (W) x 167.6 mm (H) |
| Weight | 11.4 lbs (5.2 kgs) |
Additional information
| Weight | 5.1710060782001 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-12180 |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB12180 |
| Manufacturers SKU | 40648 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 18 Ah @20 Hr |
| Capacity @20 Hr | 18 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 7.13 |
| Width (In) | 3.06 |
| Height - Case (In) | 6.6 |
| Height - Overall (In) | 6.6 |
| Length (mm) | 181.6 |
| Width (mm) | 77.72 |
| Height - Case (mm) | 167.6 |
| Height - Overall (mm) | 167.6 |
| Weight (lb) | 11.4 |
| Weight (kg) | 5.2 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 4 |
| Qty Per Pallet | 240 |
Reviews
There are no reviews yet.
Similar Products from this Brand
Form, Fit and Function Equivalents
Please choose search option from the menu to start your search...
Universal Power UB12180 Lead Acid Battery
$89.30
Universal Power UB12180 UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals
Out of stock
Description
Universal Power UB12180 UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Recessed M6 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-12180R |
| Dimensions | 7.13″ (L) x 3.06″ (W) x 6.6″ (H) |
| Dimensions (mm) | 181.6 mm (L) x 77.72 mm (W) x 167.6 mm (H) |
| Weight | 11.4 lbs (5.2 kgs) |
Additional information
| Weight | 5.1710060782001 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-12180 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB12180 |
| Manufacturers SKU | 45570 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 18 Ah @20 Hr |
| Capacity @20 Hr | 18 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 7.13 |
| Width (In) | 3.06 |
| Height - Case (In) | 6.6 |
| Height - Overall (In) | 6.6 |
| Length (mm) | 181.6 |
| Width (mm) | 77.72 |
| Height - Case (mm) | 167.6 |
| Height - Overall (mm) | 167.6 |
| Weight (lb) | 11.4 |
| Weight (kg) | 5.2 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 4 |
| Qty Per Pallet | 240 |
Reviews
There are no reviews yet.
